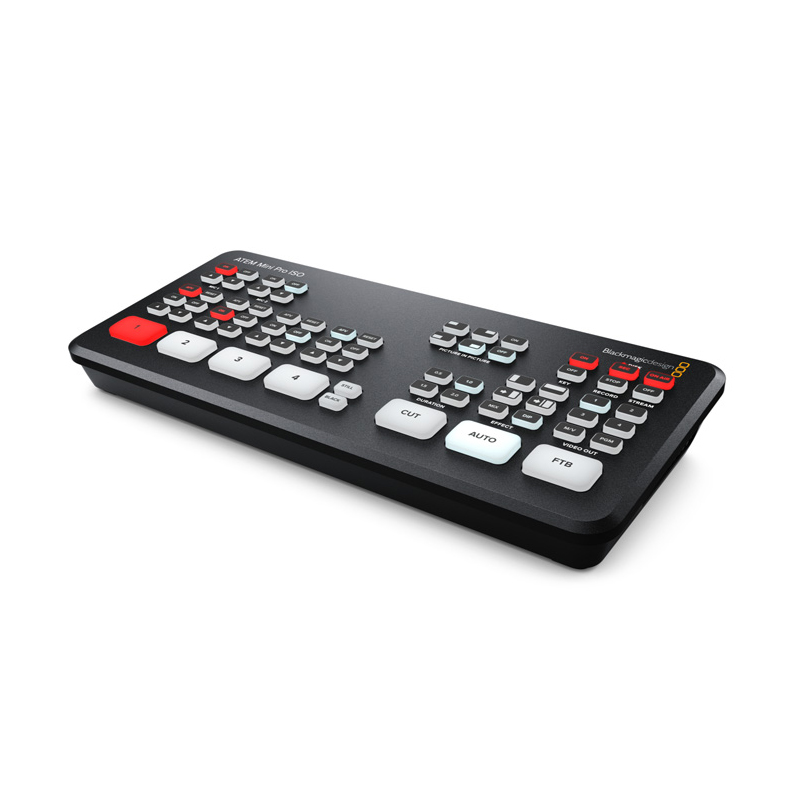

Blackmagic Design ATEM Mini Pro ISO

Blackmagic Design

Share หน้านี้ :

35,750 ฿

จุดเด่นผลิตภัณฑ์

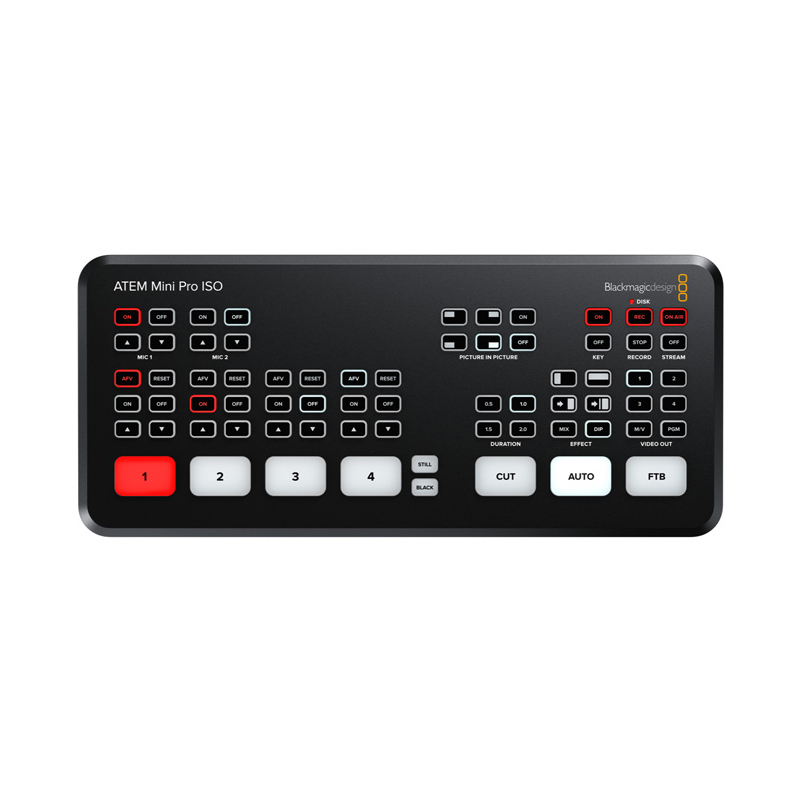

  • คุณสมบัติการออกแบบตามแผงควบคุมขนาดเล็ก
  • สร้างขึ้นเพื่อรองรับการบันทึกแต่ละอินพุตเป็นไฟล์ ISO แยกต่างหาก

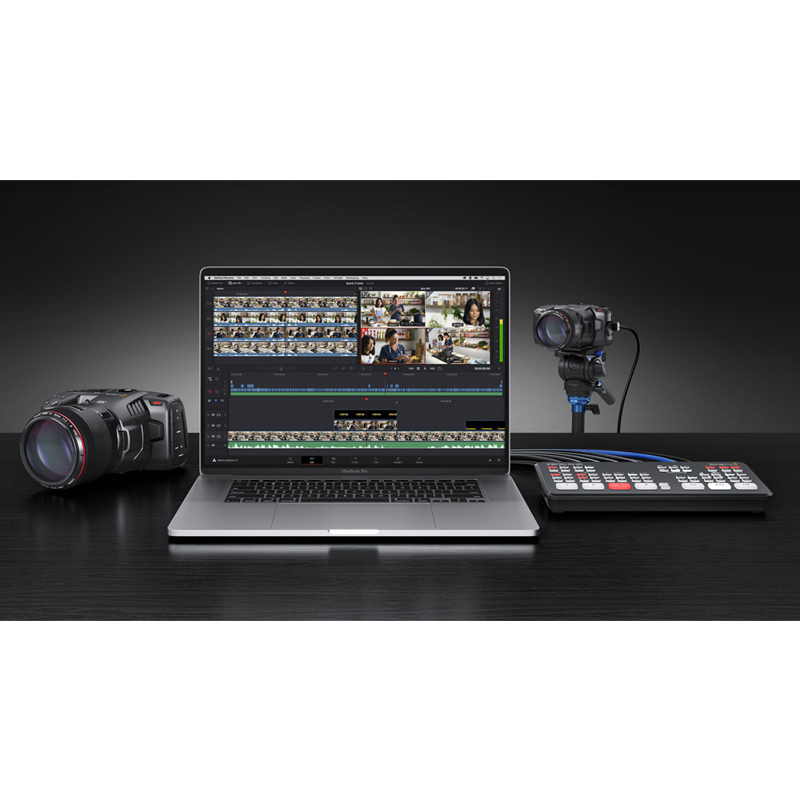

  • บันทึกไฟล์โครงการ DaVinci Resolve สำหรับ 1 คลิกแก้ไขการ live production
  • รองรับการเชื่อมต่อกับกล้องหรือคอมพิวเตอร์สูงสุด 4 เครื่อง
  • การสตรีมสดผ่านทางอีเธอร์เน็ตที่รองรับ ATEM Mini Pro
  • เอาต์พุต USB ทำงานเป็นเว็บแคมและรองรับซอฟต์แวร์วิดีโอทั้งหมด
  • มาตรฐานแปลงและซิงค์อินพุต HDMI ทั้งหมดโดยอัตโนมัติ
  • รวม ATEM Software Control ฟรีสำหรับ Mac และ Windows
  • สื่อภายในสำหรับกราฟิก RGBA 20 รายการสำหรับชื่อเรื่องแผ่นเปิดและโลโก้
  • รวมถึงกุญแจ Chroma ขั้นสูงของ ATEM สำหรับการทำงานของหน้าจอสีเขียว / สีน้ำเงิน
  • Multiview ช่วยให้สามารถตรวจสอบกล้องทั้งหมดใน ATEM Mini Pro
  • มิกเซอร์เสียงรองรับลิมิตเตอร์, คอมเพรสเซอร์, EQ 6 แบนด์และอื่น ๆ !

สเปค Blackmagic Design ATEM Mini Pro ISO

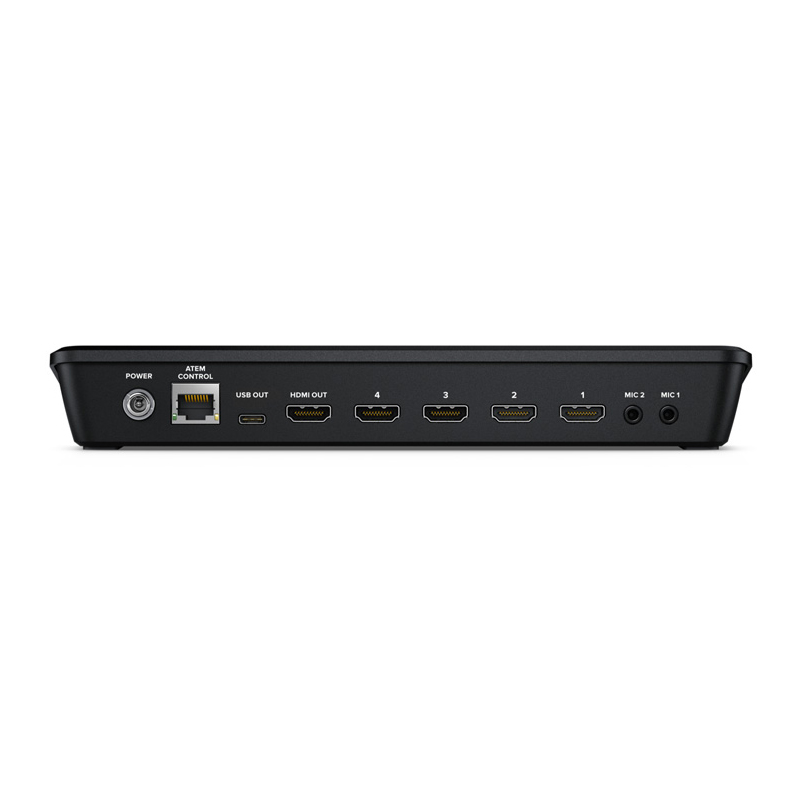

Connections

Total Video Inputs Video Input Re-Sync
4 On all 4 HDMI inputs.
Total Outputs Frame Rate and Format Converters
2 On all 4 HDMI inputs.
Total Aux Outputs HDMI Program Outputs
1 1
Total Audio Inputs Ethernet
2 x 3.5mm stereo mini jack. Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Timecode Connection Computer Interface
None 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
HDMI Video Inputs
4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.

Standards

HD Video Input Standards Video Sampling
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
4:2:2 YUV
HD Video Output Standards Color Precision
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 10-bit
Video Streaming Standards Color Space
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Rec 709
Ultra HD Video Standards HDMI Input Resolutions from Computers
None 1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
1920 x1080i 50 and 59.94Hz 60Hz
Colorspace Conversion
Hardware based real time.

Product Specifics

Upstream Keyers Total Number of Layers
1 5
Downstream Keyers Pattern Generators
1 1
Advanced Chroma Keyers Color Generators
1 2
Linear/Luma Keyers DVE with Borders and Drop Shadow
2 1
Transition Keyer Interface
DVE only. Minimum monitor resolution of 1366 x 768.

Audio

Audio Mixer Analog Input Delay
6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Up to 8 frames
Analog Input Input Impedance
Unbalanced stereo 1.8k
Max Input Level
+6dBV
Mic Plug In Power
Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming
ATEM Mini Pro ISO supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

Recording

Direct Recording Video and Audio Audio Recording
USB-C 3.1 Gen 1 expansion port can record directly to external media. 6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.
Video Recording Switching
4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Program switching recorded as a DaVinci Resolve project .drp file.
Media Format
Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Multi View Monitoring Multi View Video Standard
1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. HD

Media Player

Media Players Media Pool Still Image Capacity
1 20 with fill and key.
Channels Media Pool Still Image Format
Fill and key for each Media Player. PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel Control Panel Compatibilty
Built in control panel. Software control panel with camera control included. Supports optional hardware panel. Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Connection Control Panel Included
Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software. ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.

Software

Software Updates Configuration
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility. Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows 10, 64-bit.

Power Requirements

Power Supply Power Usage
1 x External 12V power supply. 36W



Environmental Specifications

Operating Temperature Relative Humidity
5° C to 40° C (41° – 104° F) 0% to 90% non-condensing
Storage Temperature
-10° to 60° C (14° to 140° F)

What’s Included

Warranty

ATEM Mini Pro ISO
External 12V DC power supply with international socket adapters
12 Months Limited Manufacturer’s Warranty.
