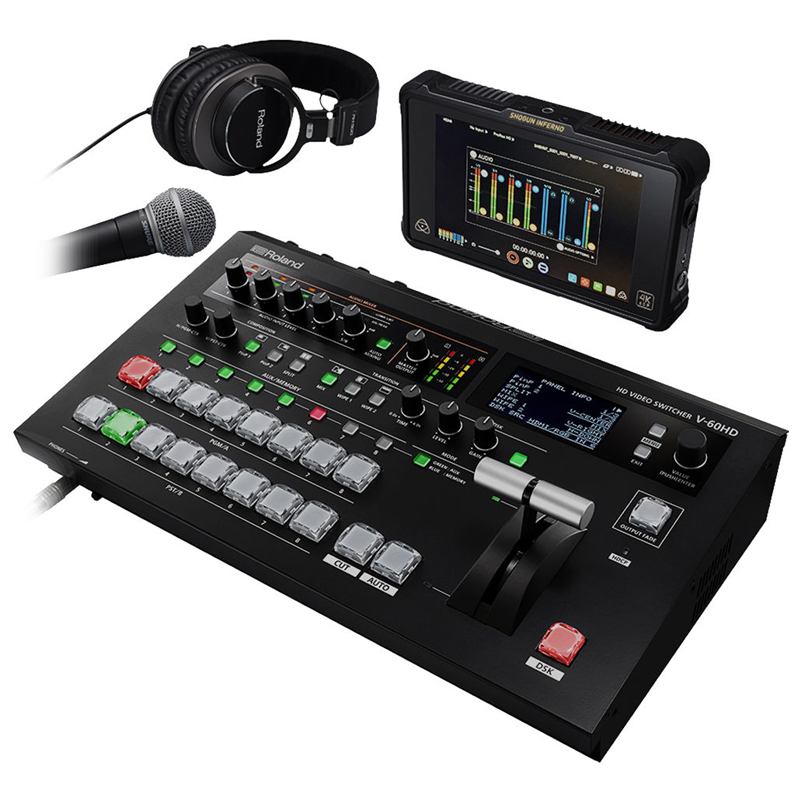

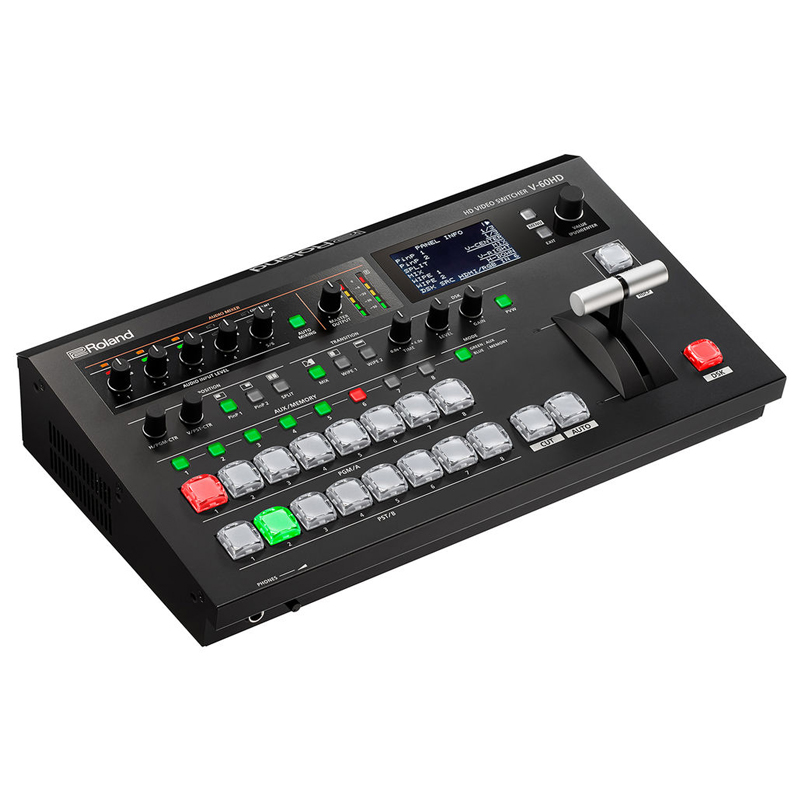

Roland V-60HD Multi-Format 4 HDSDI , 2 HDMI , With Tally Interface

Roland

Share หน้านี้ :

90,800 ฿

จุดเด่นผลิตภัณฑ์

  • 8 x Multi-Format Channels; 6 x Inputs
  • 4 x SDI Inputs with Deinterlace
  • 2 x HDMI Inputs with Scalers
  • 1 x RGB/Component Input Shared with HDMI

สเปค Roland V-8HD HDMI Video Switcher

Video
Video Processing YPbPr: 4:2:2, 8-bit

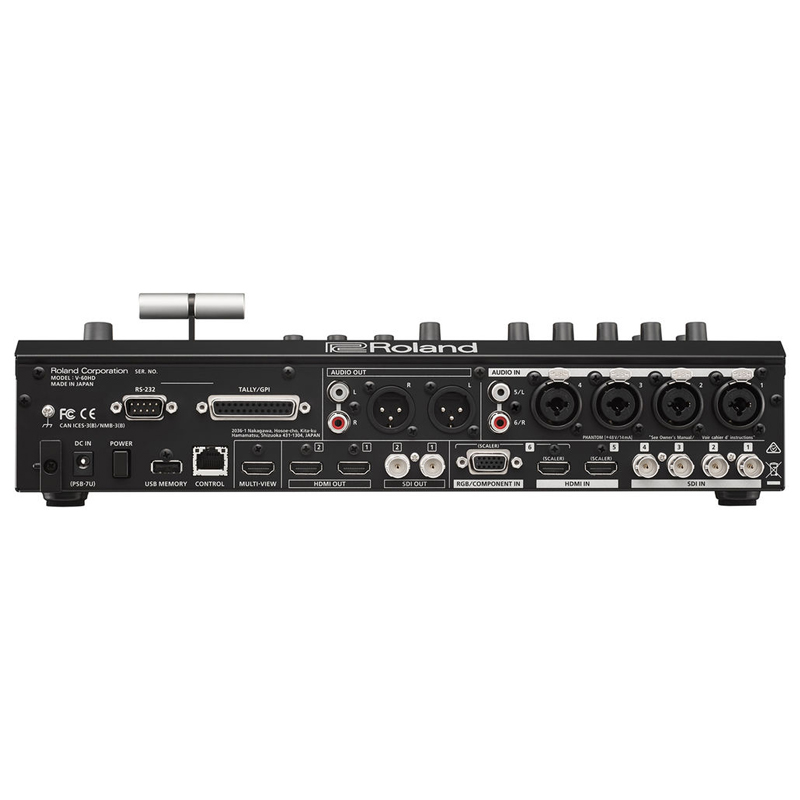

Inputs 4 x SDI, BNC (inputs 1 to 4)
2 x HDMI type A (inputs 5 to 6)
1 x HD-15 VGA, RGB/component (shared with HDMI input 6)
Outputs 2 x SDI, BNC
2 x HDMI type A
1 x HDMI type A, multiview
Input Format Support SDI In
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50
Inputs 1–4 conform to SMPTE 296M & 274MHDMI/RGB/Component In
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50
480i/p: 59.94
576i/p: 50
WUXGA 1920 x 1200: 60 Hz
UXGA 1600 x 1200: 60 Hz
SXGA+ 1400 x 1050: 60 Hz
FWXGA 1366 x 768: 60 Hz
SXGA 1280 x 1024: 60 Hz
WXGA 1280 x 768: 60 Hz
XGA 1024 x 768: 60 Hz
SVGA 800 x 600: 60 Hz
VGA 640 x 480: 60 HzNote: Interlaced input signal is converted to progressive by internal processing. The video signal frame rate can be selected at the System Menu (59.94 or 50).
Still Image Windows Bitmap (.bmp)
Maximum: 1920 x 1080 pixels, 24-bit color, uncompressed
Maximum of 2 files in the internal memory
Output Format Support SDI
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50HDMI
1080p: 59.94/50
1080i: 59.94/50
720p: 60/50HDMI Multiview
1080p: 59.94/50
Video Effects Transition
Cut
Mix
Wipe (30 types)Composition
PiP (square, circle, heart, diamond)
Split (4 types)
DSK (luminance key, chroma key)Others
Horizontal flip
Output fade
Still image capture
Still image playback
Test pattern output
Audio
Audio Processing Sampling Rate: 24-bit, 48 kHz
Audio Formats SDI In: Linear PCM, 24-bit, 48 kHz, 2-Ch
SDI Out: Linear PCM, 24-bit, 48 kHz, 8-Ch
HDMI In/Out: Linear PCM: 24-bit, 48 kHz, 2-Ch
Input Connectors Digital
4 x SDI, BNC
2 x HDMI type AAnalog
4 x XLR/1/4″ TRS phone combo (supports phantom power)
2 x RCA phono type
Phantom Power +48 VDC
1 mAh
Input Level Audio In 1 to 4
-60 to +4 dBu (Maximum: +22 dBu)Audio In 5 to 6
-10 dBu (Maximum: +8 dBu)
Input Impedance Audio In 1 to 4
10 kOhms (Head Amp Gain: 0 to 23 dB)
5 kOhms (Head Amp Gain: 24 to +64 dBu)Audio In 5 to 6
15 kOhms
Output Connectors Digital
2 x SDI, BNC (shared with video)
2 x HDMI type A (shared with video)
1 x HDMI type A, multiview (shared with video)Analog
2 x 3-pin XLR (L/R pair)
2 x RCA phono type (L/R pair)
1 x 1/4″ stereo headphone
Output Level Audio Out (XLR): +4 dBu (Maximum: +22 dBu)
Audio Out (RCA): -10 dBu (Maximum: +8 dBu)
Phones: 92 mW + 92 mW (32 Ohms)
Output Impedance Audio Out (XLR): 600 Ohms
Audio Out (RCA): 1 kOhms
Phones: 10 Ohms
Audio Effects Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter
General
Interface USB Type-A (for USB memory)
Tally/GPI: DB-25, female (Tally: 12 / GPI: 8)
RS-232: DB-9 male (for remote control)
LAN: RJ45 100BASE-TX (for remote control)
Functions Memory (8 types)
Panel lock
EDID emulator
Display Graphic LCD: 128 x 64 dots
Power AC power adapter
Power Consumption 12 VDC
37 W
3.1 A
Operation Temperature 0 to 40°C / 32 to 104°F
Dimensions 35.6 x 22.1 x 9.6 cm / 14.0 x 8.7 x 3.8″
Weight 3 kg / 6.6 lb

* Headphones, microphones, video recorders are not included
* 4K is not supported



PLUG-N-PLAY PRODUCTION SWITCHER WITH AUDIO FOR LIVE EVENT AND STREAMING

Live event production and streaming continues to grow and the demand for more features requires a sophisticated feature set. The V-60HD simplifies your set-ups and combines the best of both worlds that includes SDI inputs for camera sources and scaled HDMI inputs for data, computer, tablet and other video sources. The combination of powerful audio features that include multi-channel embedded audio, XLR and RCA analog inputs, de-embedded audio from digital SDI or HDMI sources plus a variety of video connections with a Program and Aux Bus makes the V-60HD ideal for a variety of live event production and streaming applications.

Live Production

Corporate event production is the fastest growing live event space with companies hosting town halls, meetings, trainings, new product announcements, both in person and streaming.

  • The V-60HD is portable and small enough to be used in multiple locations in an office or outside meeting location.
  • The four SDI inputs and two HDMI inputs are perfect for switching cameras and computers at the same time for dynamic presentations.
  • Not all cameras support full 1080p so the de-interlacer on the SDI inputs allows allows you to mix and match 1080i and 1080p SDI video sources multiple camera without external converters.
  • Audio is easier to mix than ever before using the V-60HD’s auto mixing function that will automatically balance audio levels from multiple microphones and video sources freeing up the operator to focus on switching the video for the event.

Education

Video communication helps improve the effectiveness of education when used for streaming lectures, assemblies, distance learning, sports, live performances or theater productions.

  • Multi destination outputs include Program, Preview and AUX buses and make it easy to send the main output to the primary screen or live stream and presenter notes to a presenter’s monitor.
  • Audio auto-mixing automatically adjusts audio level based on weighting ensuring even levels for the room mix, presenter to send to recording, live stream or in-room speakers.
  • Educators can use the multi-channel audio embed function to record 8 discreet audio channels to an SDI video recorder to fix audio issues in later editing or separate multi-language audio sources post event.
  • The V-60HD’s user interface is easy for students, novices and can be controlled remotely through the LAN port using Roland’s Remote-Control Software from PC or Mac.
  • For fixed installations, the V-60HD can be remotely controlled through the RS-232 port using touch panel interfaces making it easy to control functions.

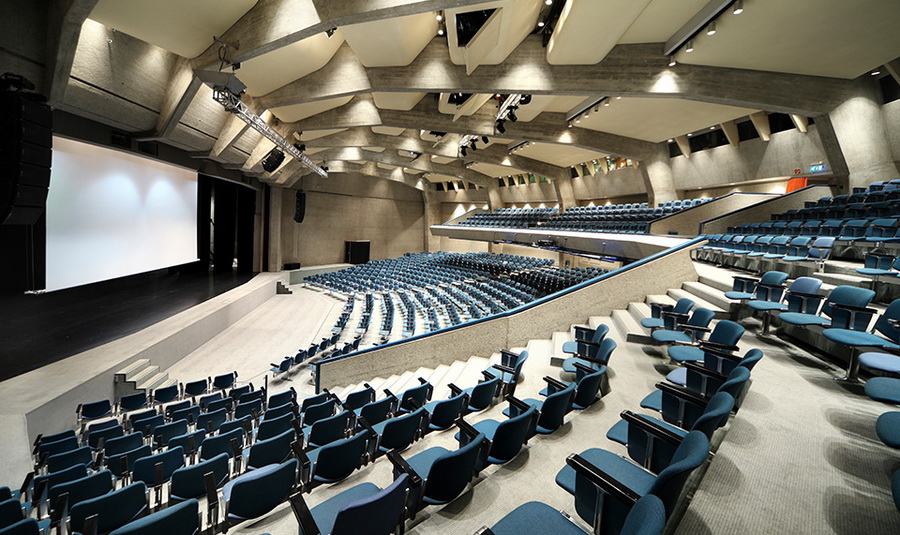

Church/Theater

The V-60HD is ideal for multiscreen environments usually found in churches, conference centers, hotels, and trade show facilities where different content needs to be switched to independent screens.

  • The dedicated Aux buttons make switching to a second destination as easy as switching to the main screen
  • A newly designed wireless tally system for iOS and Android devices makes for smoother events by providing tally that helps talent and camera operators identify which camera is current selected for program and which camera will be switched to next.
  • Integrated audio inputs and advanced effects including Auto-Mixing and powerful dynamics make the V-60HD an ideal streaming mixer solution to remix stems from an audio console and adjusted for broadcast.

VIDEO

Cut, Mix with cross dissolve and NAM, FAM transitions. Use up to 30 different wipe patterns. Time based corrected and frame synched provides seamless transitions between 6 video sources and 2 still images instead of buses.

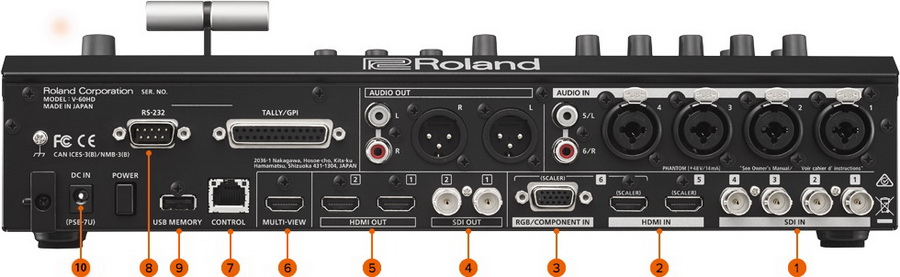

  • 14 SDI Inputs (with de-interlacer)
  • 22 HDMI Inputs (scaled)
  • 31 RGB shared with HDMI input 6 (scaled)
  • 42 SDI Outputs ‒ Assignable to PGM, PVW, AUX
  • 52 HDMI Outputs ‒ Assignable to PGM, PVW, AUX
  • 61 Multiview Outputs ‒ Program, Preview, plus 8 video sources with Audio meters.
  • 7LAN ‒ Remote control and Smart Tally
  • 8RS-232 ‒ Remote control
  • 9USB Port ‒ Still Image Upload, Saving Program Files

  • SDI Camera
  • HDMI Camera
  • PC / Mac
  • Smartphone / Tablet
  • Blu-ray Disc Player

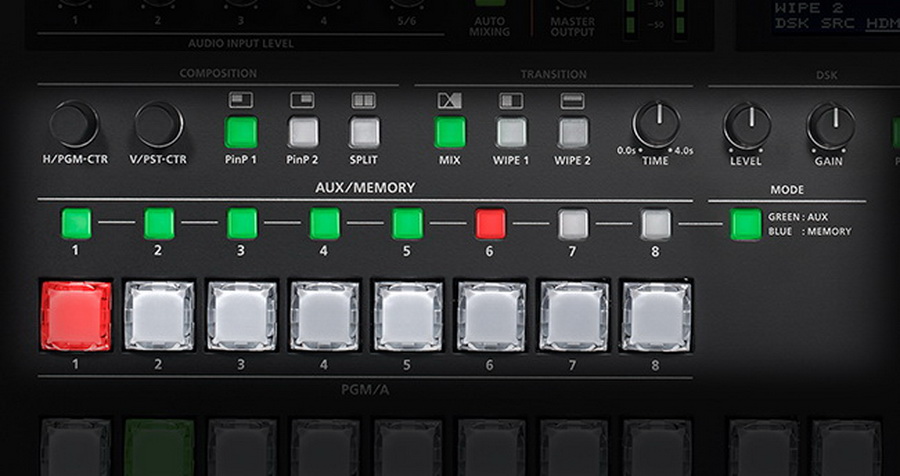

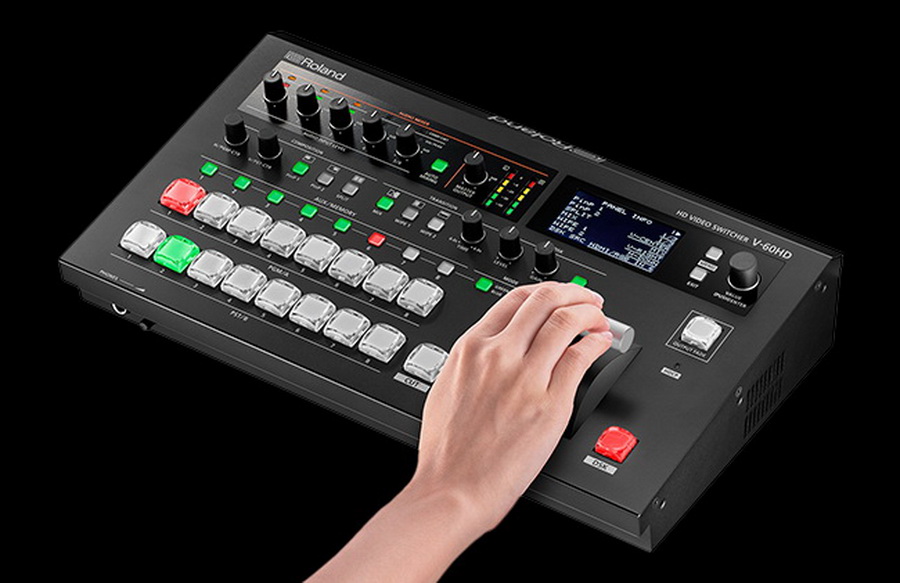

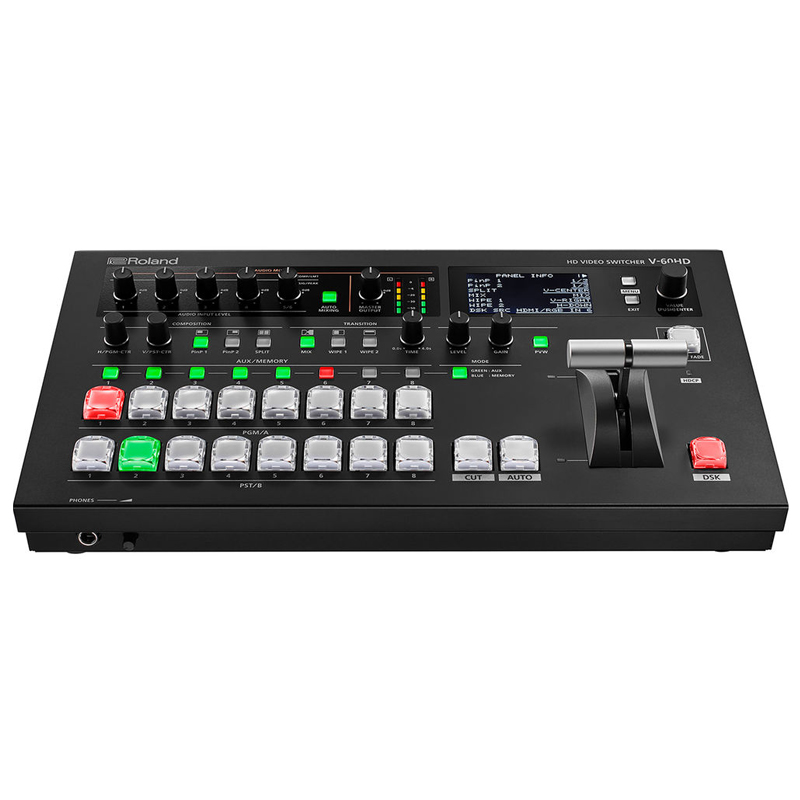

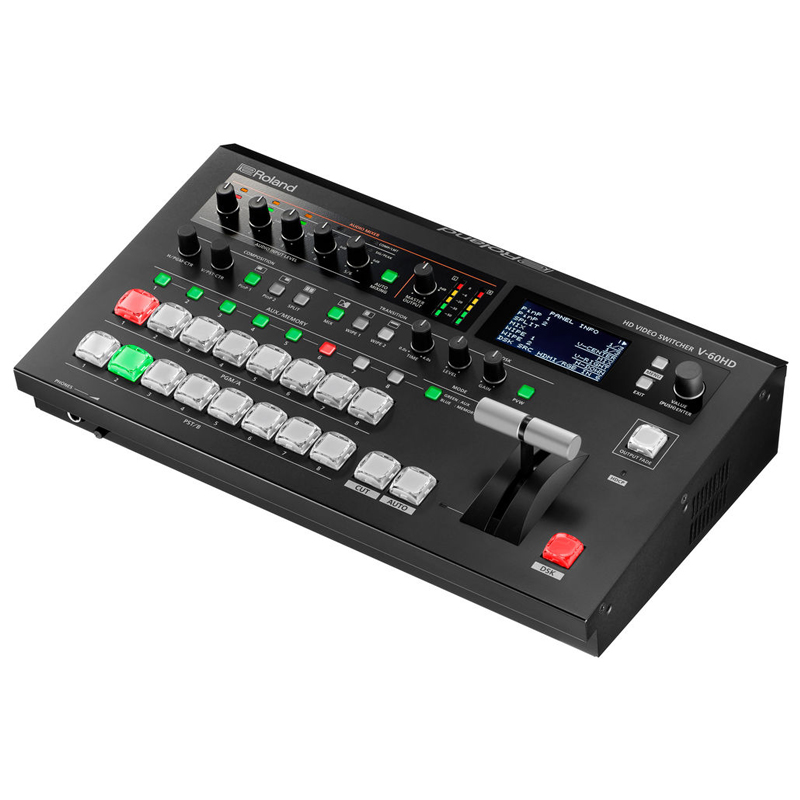

Professional user interface

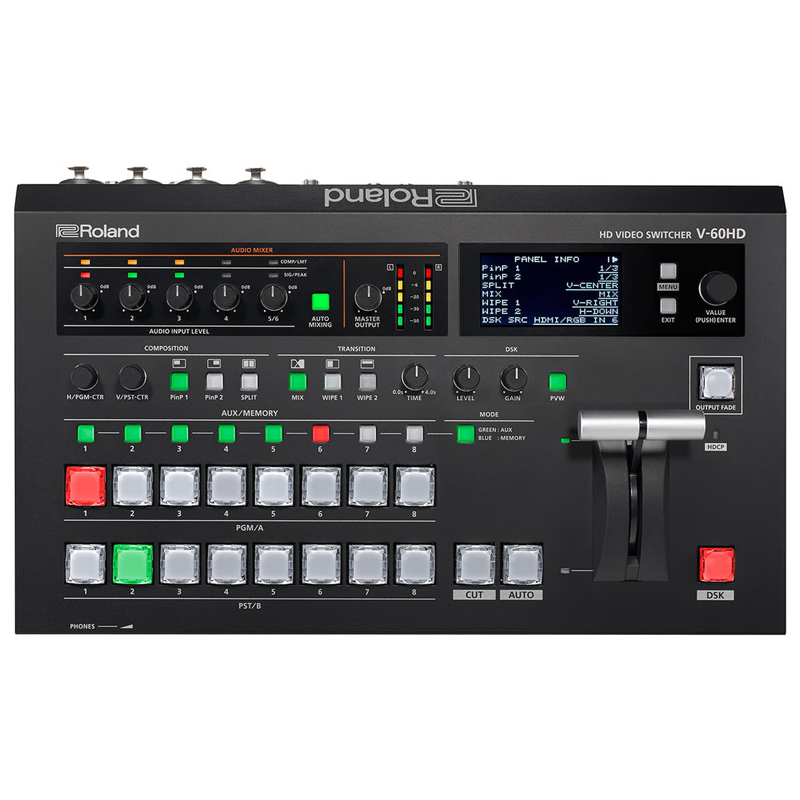

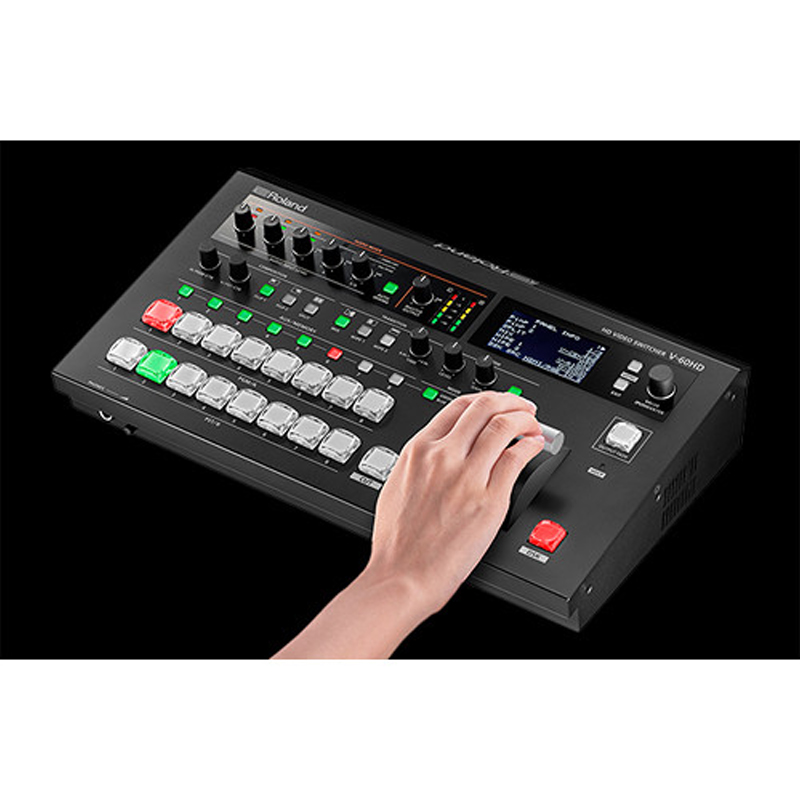

Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain. Two dedicated PinP and Split buttons with knobs for center framing of Split and PinP placement. Change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob. Front panel 3-inch LCD display with quick access menu navigation to adjust switcher parameters.

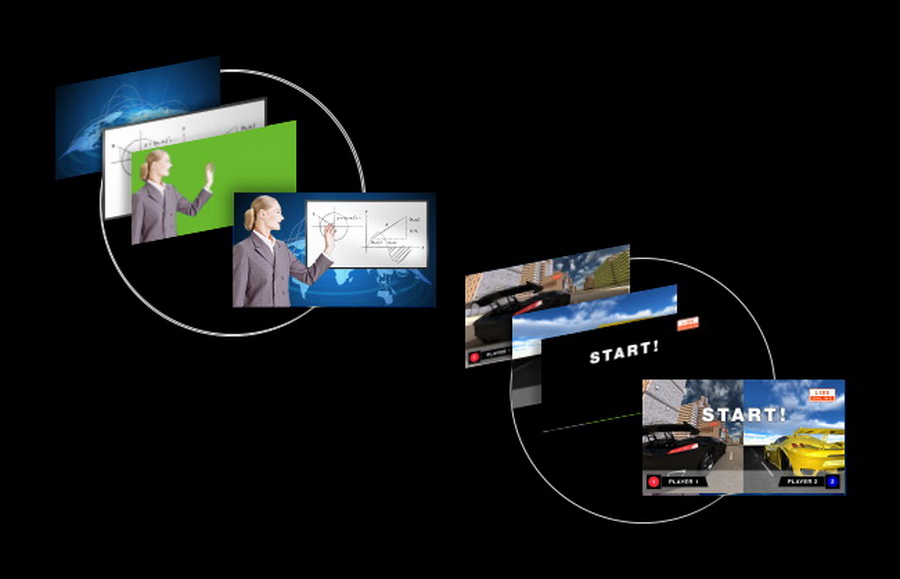

Video composition

Professional broadcast cross point buttons with PGM/PST LED color indicators. Rugged T-Bar, DSK quick edit knobs for key level and gain. Two dedicated PinP and Split buttons with knobs for center framing of Split and PinP placement. Change transition type using either mix or two preset wipe buttons with dedicated transition dissolve time knob. Front panel 3-inch LCD display with quick access menu navigation to adjust switcher parameters.

AUX bus

A dedicated AUX bus can be assigned to any of the four discreet SDI or HDMI outputs providing seamless switching from the 8-input channels (4 SDI, 2 HDMI or 1 RGB and 2 Still Images). Dedicated AUX layer cross-point buttons ensures quick operation and seamless switching.

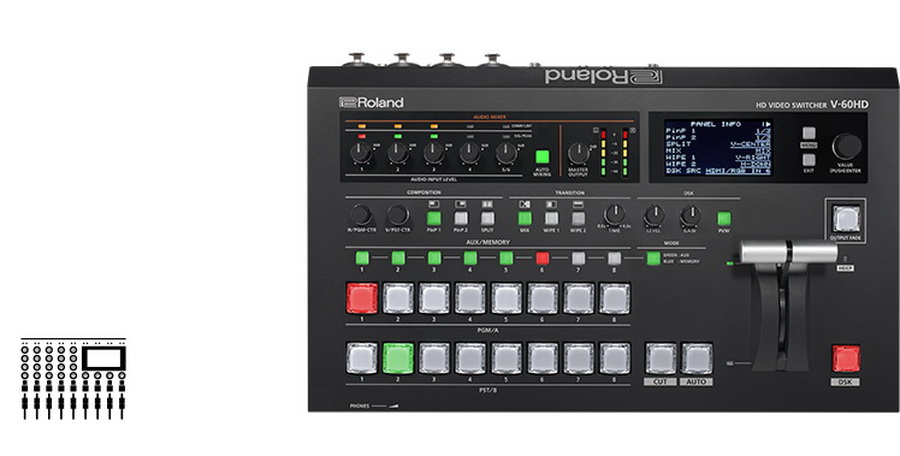

AUDIO

The V-60HD features an 18-channel audio mixer which includes four XLR/TRS Combo jacks with 48v phantom power, RCA stereo Pair, plus audio de-embed from the six video inputs.



Audio Mixer with preamp and dynamics (compressor)

The V-60HD powerful preamp and dynamics effects include a high-pass filter, gate, compressor, 3-band EQ, delay and ability to select audio follows video channel so audio passes through when a specific video source is selected. Dynamics can be adjusted from the onscreen menu or accessed through the powerful Remote-Control Software for Windows or Mac.

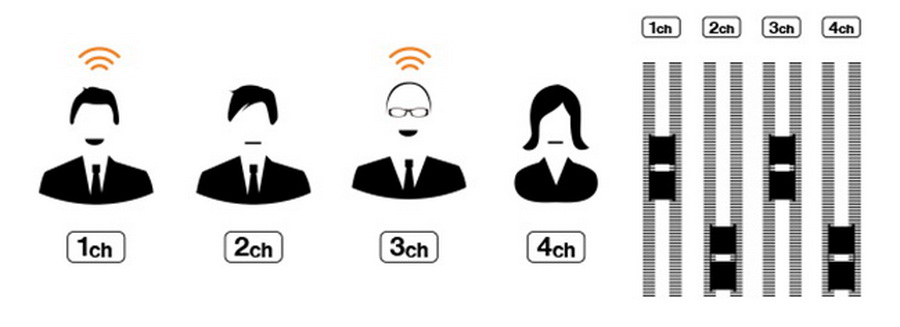

Auto mixing

The included Auto-Mixing function ensures the correct mix for multiple panel participants at conferences by automatically adjusting levels across multiple audio sources. A priority weighting assignment that is channel specific can be set giving the moderator or priority audio channel a higher volume level while using the Auto-Mixing function allowing the operator to focus on video switching and production.

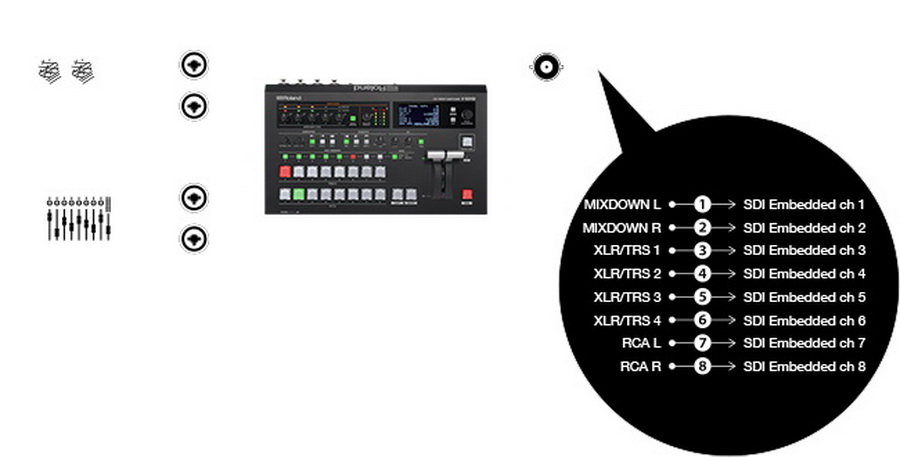

Discreet Multi-Channel Audio Embedding

Assign up to eight analog audio inputs a separate audio embed channel on SDI 1 and 2 outputs to ensure a separate mix pre-effect (dry) or post effect (wet) for correcting audio problems post live event. This feature is additionally useful for multi-language events to record the voice-over or language translation on its own audio channel to a separate master.

SMART TALLY

Roland’s unique and proprietary wireless tally system uses a wireless LAN router connected to the V-60HD to send tally information to iOS or Android devices on the network.*Future update TBA

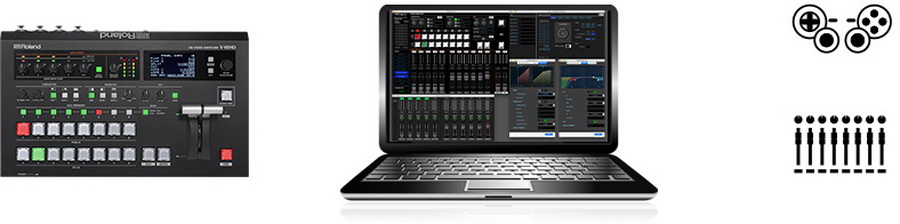

REMOTE CONTROL

An easy-to-use software application V-60HD RCS for Mac or PC provides setup and control information for the Roland V-60HD through a network port. Copy, store and recall memory (backup) and preset settings. The free RCS application is expected to release early Q2 2018.
The V-60HD is equipped with an RS-232 port for control and operation remotely from a touch panel or other programmable interface device.
*Future update
