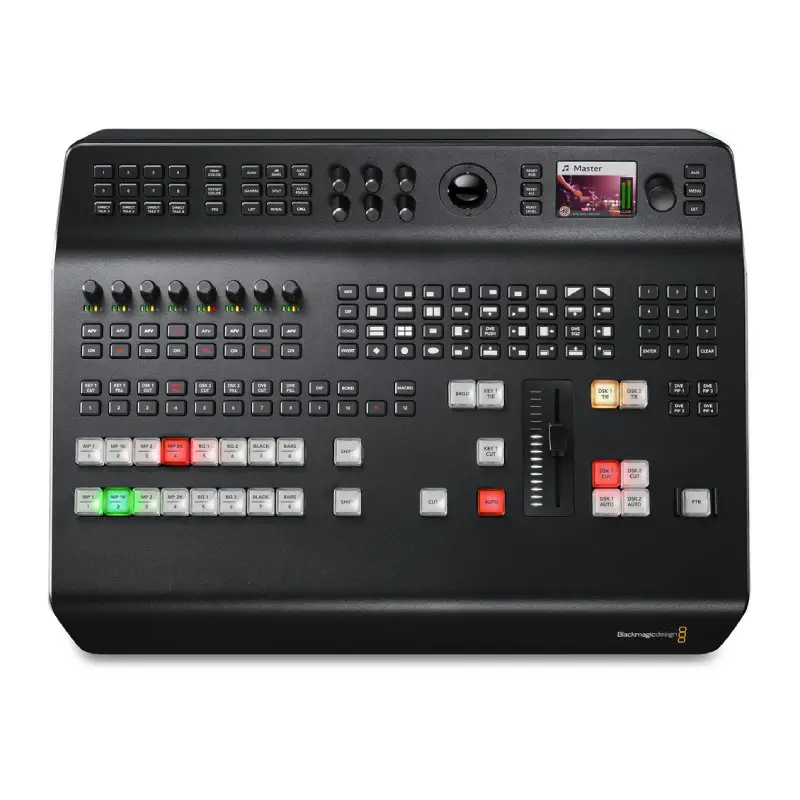

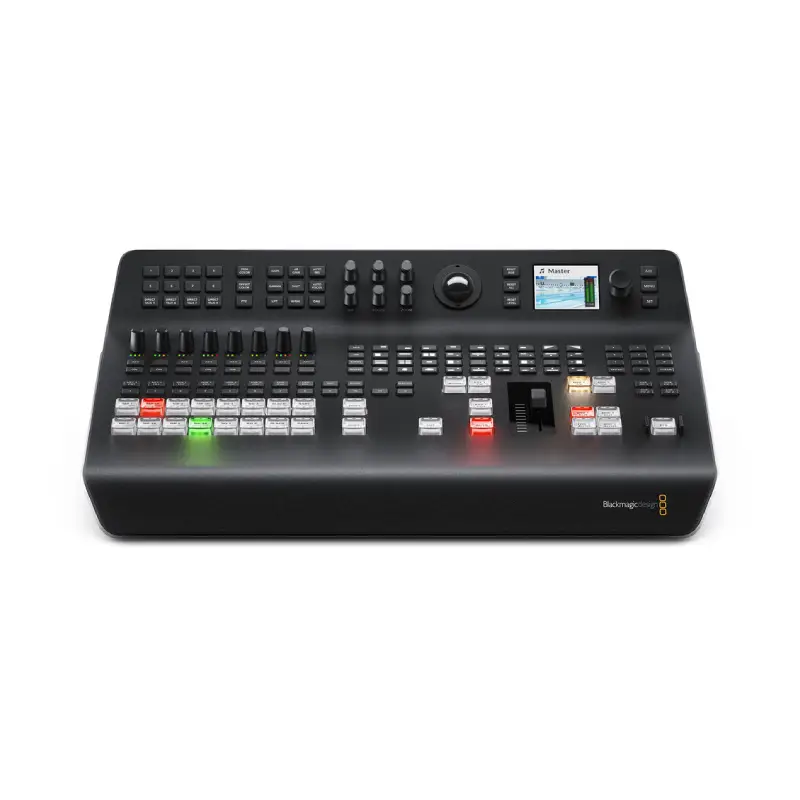

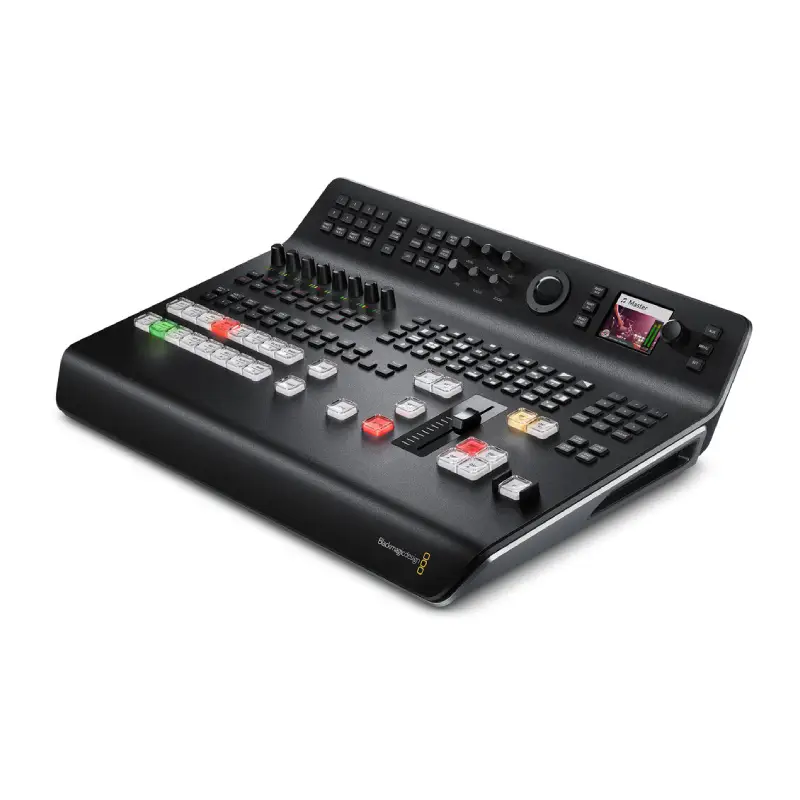

Blackmagic Design ATEM Television Studio Pro 4K
Out of Stock
Description
จุดเด่นผลิตภัณฑ์
- Switcher 8 ช่อง 12G-SDI
- รองรับสัญญาณ HD และ UHD ถึง 2160p60
- มิกเซอร์เสียง 12 อินพุต 2 แชนเนล
- Re-Syncกับอินพุตทั้งหมด
- เอาต์พุต UHD 4K Multiview
- ตัวแปลง Low-Latency
- คุณสมบัติ Talkback ในตัว
- การควบคุม CCU สำหรับกล้องบางรุ่น
- ATEM Advanced Chroma Keyer
- โปรเซสเซอร์ DVE อันทรงพลัง, 2 x Clip Pool
สเปค Blackmagic Design ATEM Television Studio Pro 4K

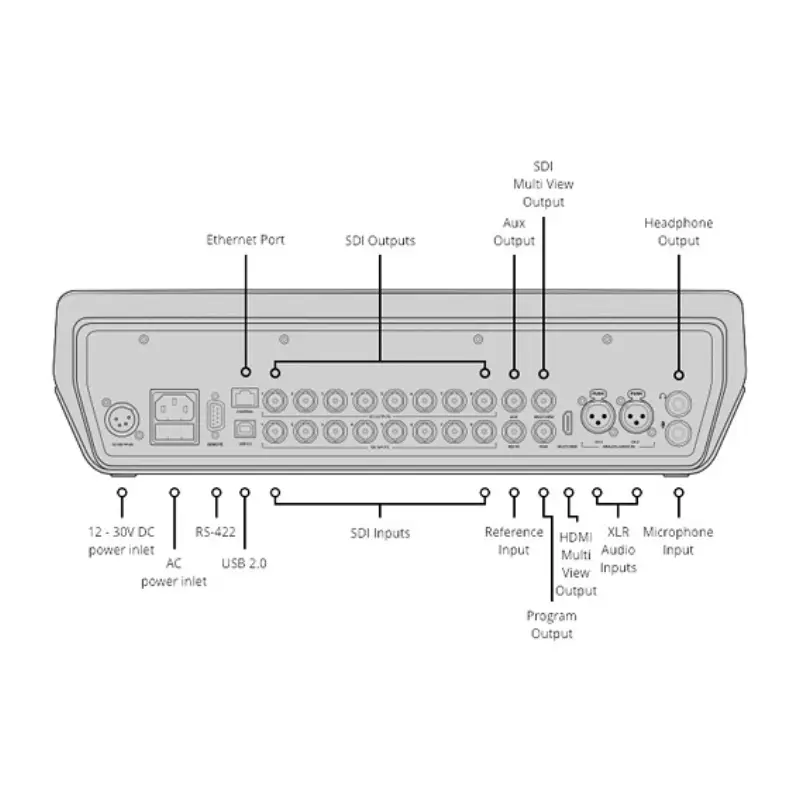

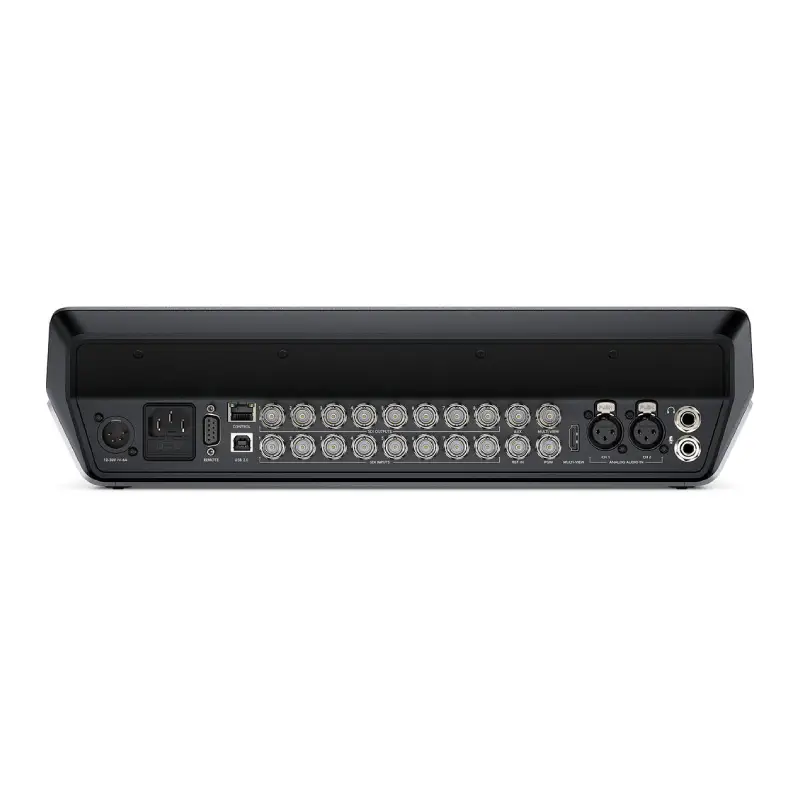

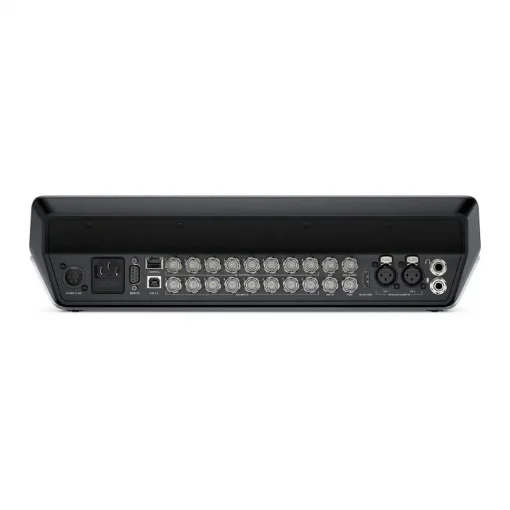

| I/O | |
| Inputs | 12G/HD/SD-SDI: 8 x BNC Audio: 2 x 3-Pin XLR Reference: 1 x BNC |
| Outputs | 12G/HD/SD-SDI: 8 x BNC Auxiliary: 1 x BNC Program: 1 x BNC Multiview: 1 x BNC Multiview: 1 x HDMI Headphone: 1 |
| Other | 1 x RS-422 1 x Ethernet 1 x USB 2.0 1 x AC Power In 1 x 4-pin XLR Power In |
| Standards | |
| Format Support | UHD Video: 2160p: 59.94/50/29.97/25/24/23.98HD Video: 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 720p: 59.94/50Input Resolutions for Computers 2160p: 59.94/50/30/29.97/25/24/23.98 1080p: 59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 59.94/50 |
| SDI Compliance | 292M, 424M 2081, 2082 |
| Video Sampling | 4:2:2, 10-Bit |
| Color Precision | 4:2:2, 10-Bit |
| Color Space | 4:2:2 YUV |
| Color Space Conversion | None |
| Processing Delay | 6 Lines |
| General | |
| Audio Mixer | 12-Input x 2-Channel Mixer |
| Keyers | Upstream: 1 with Chroma/Linear/Luma Key Downstream: 2 Chroma: 1 Linear/Luma: 3 Transition (Stinger/DVE): 1 |
| Layers | Up to 5 |
| Generators | Pattern: 2 Color: 2 |
| DVE | Border and Drop Shadow: 1 |
| Number of Windows | Multiview: 1 x 10 Routable: 8 Fixed, Program, and Preview: 2 |
| Media Player | Players: 2 (Non-Volatile Flash Memory)
Media Pool Still Image Capacity: 20 (with Fill and Key) Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, TIFF Channels: Fill and Key for Each Media Player Media Pool Clip Capacity: 2 (with Fill and Key / Shared Pool) Media Pool Clip File Format: TGA Sequence Media Player Clip Length: Media Pool Audio File Format: WAV, MPE, AIFF |
| Compatible Operating Systems | MacOS 10.12 Sierra MacOS High Sierra 10.13 or Higher Windows 8.1 or 10 |
| Power Supply | AC: 110-240 VAC Internal DC: 1 x 4-Pin XLR |
| Power Draw | 70 W |
| Environmental | Operating: 41 to 104°F / 5 to 40°C Storage: -4 to 140°F / -20 to 60°C Relative Humidity: 0 to 90% Non-Condensing |

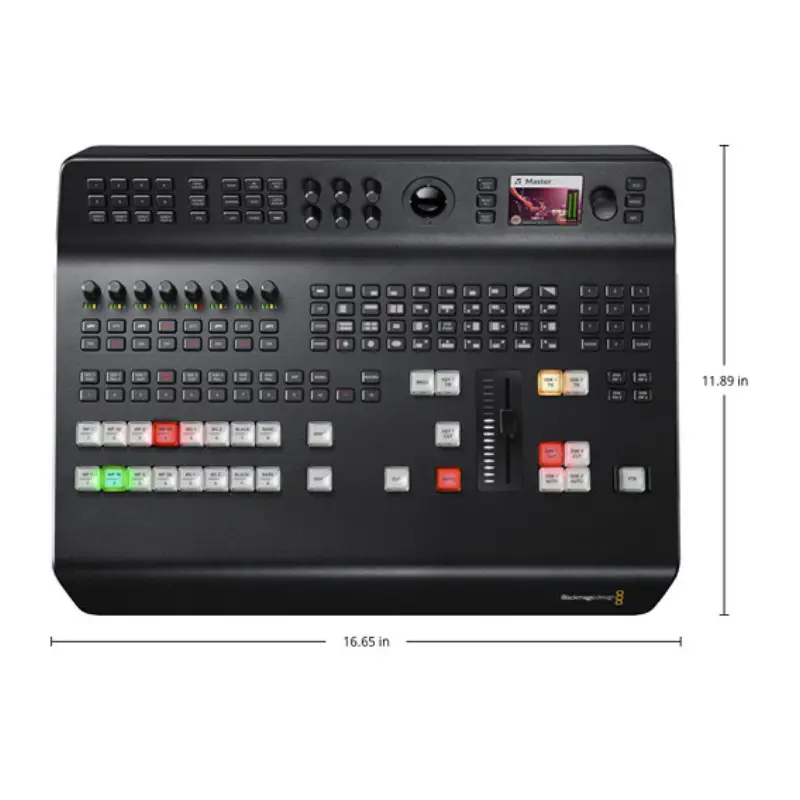

| Dimensions | 42.29 x 30.2 cm / 16.65 x 11.89″ |
| Weight | Not Specified by Manufacturer |
