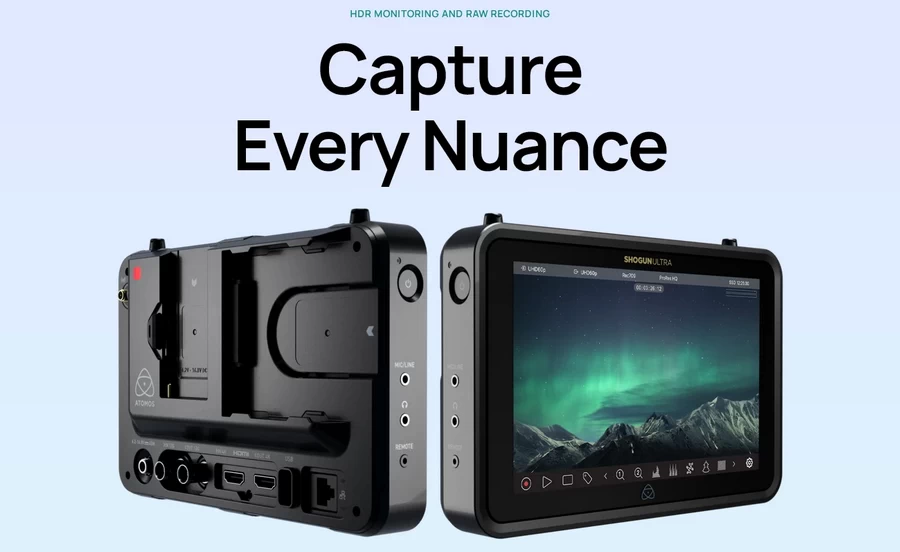

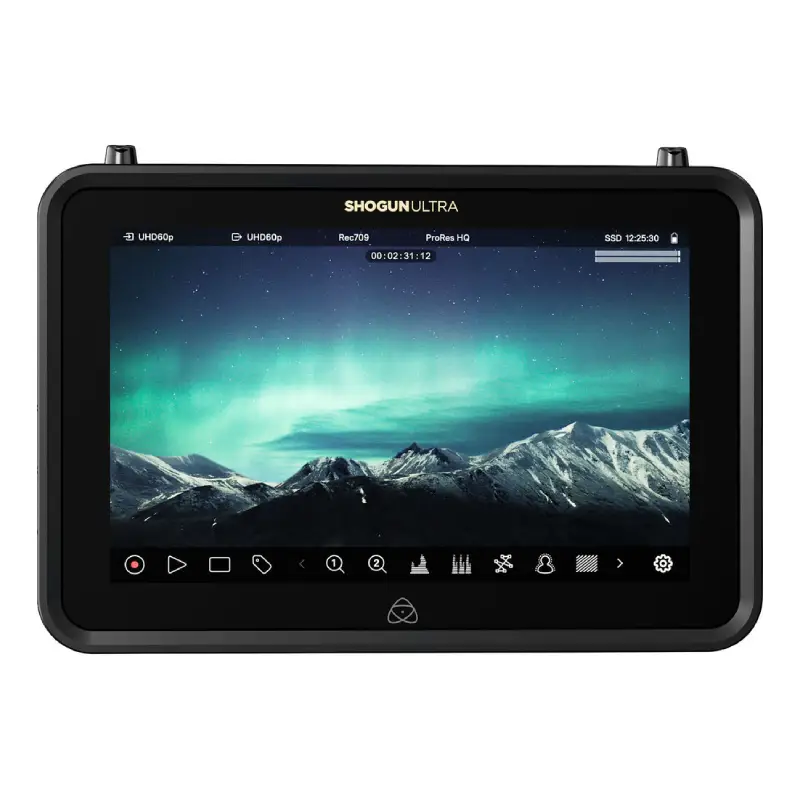

Atomos Shogun Ultra 7″ Monitor-Recorder

Name: Atomos Shogun Ultra 7" Monitor-Recorder
Brand: Atomos
SKU: 200553
Price: 51900 THB
Availability: OutOfStock

Availability : Out of stock

51,900 ฿

SKU: N/A Category: Monitor & Photo Editing Equipment -จอมอนิเตอร์และอุปกรณ์แต่งภาพ Tags: 7 inch, Atomos, Shogun Series, จอมอนิเตอร์ Brand: Atomos

Description

จุดเด่นผลิตภัณฑ์

AtomOS 11, 12G-SDI / HDMI Conversion

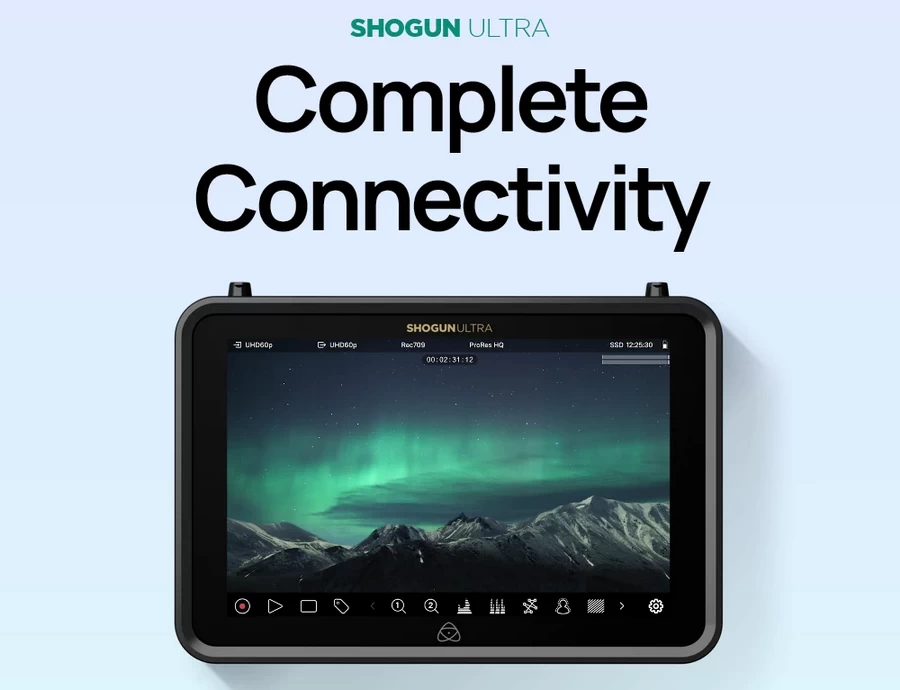

หน้าจอสัมผัสขนาด 7 นิ้ว (1920 x 1080)
บันทึก Apple ProRes Raw ได้สูงสุด 8K

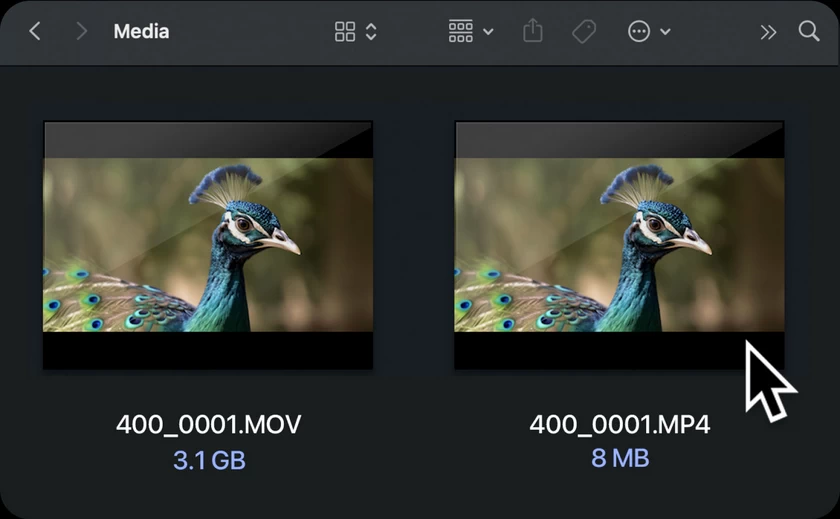

ProRes Raw + การบันทึก H.265 Dual
ซิงค์ไร้สาย AirGlu RF, GigE, 6E Wi-Fi

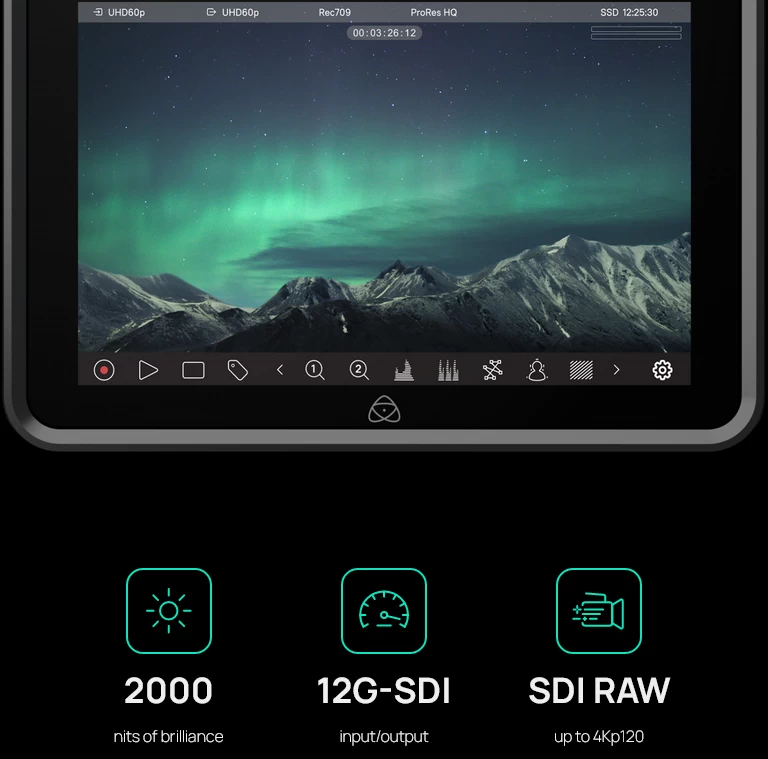

ความสว่าง 2000 cd/m²
รองรับ ARRI/Canon/RED/SDI ของกล้อง Sony
AVID DNX QuickTime

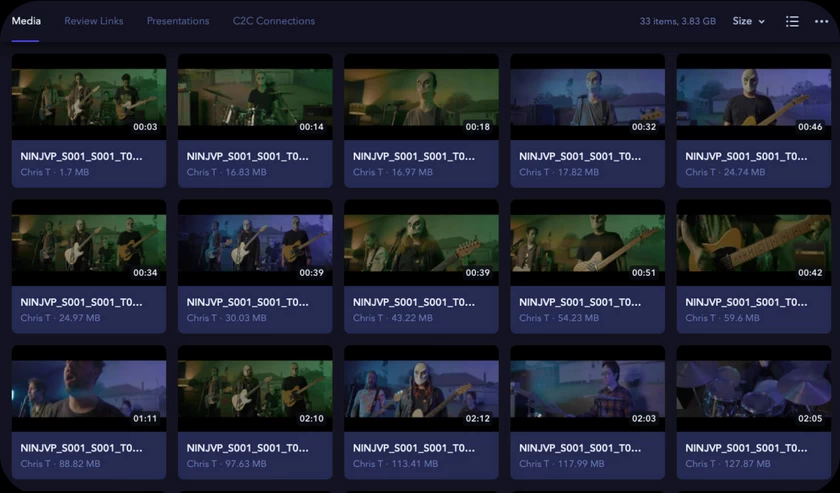

Atomos RemoteView ผ่านการสมัครสมาชิก

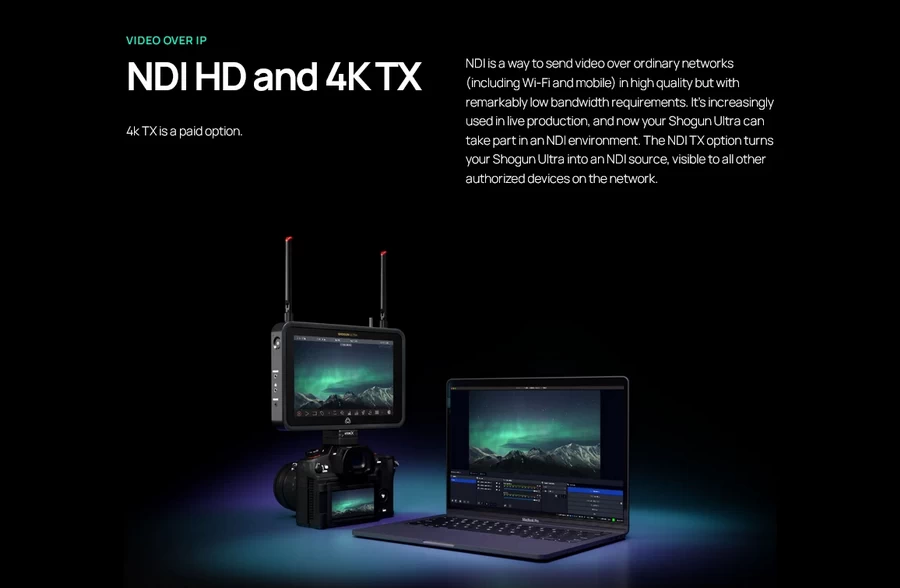

การเปิดใช้งานโหมด NDI 4K TX Pro 1-ปิด

Atomos Shogun Ultra 7 inch Monitor-Recorder-Des1

สเปค Atomos Shogun Ultra 7″ Monitor-Recorder

Display
Panel Type	IPS-Type LCD
Display Size	17.8 cm / 7.0″
Resolution	1920 x 1200
Aspect Ratio	16:9
Touchscreen	Yes
Maximum Brightness	2000 nits / cd/m²
Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
HDR Compatibility	HDR10
Pixels Per Inch (ppi)	315 ppi
Color Gamut	100% DCI-P3 100% Rec. 2020
Real-Time LUT Monitoring	SDR, HDR

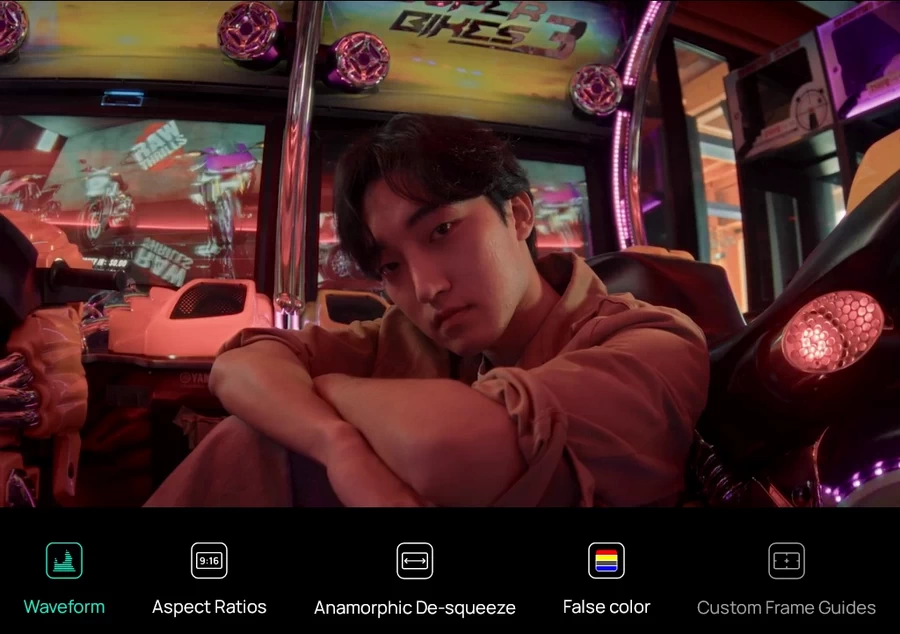

Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

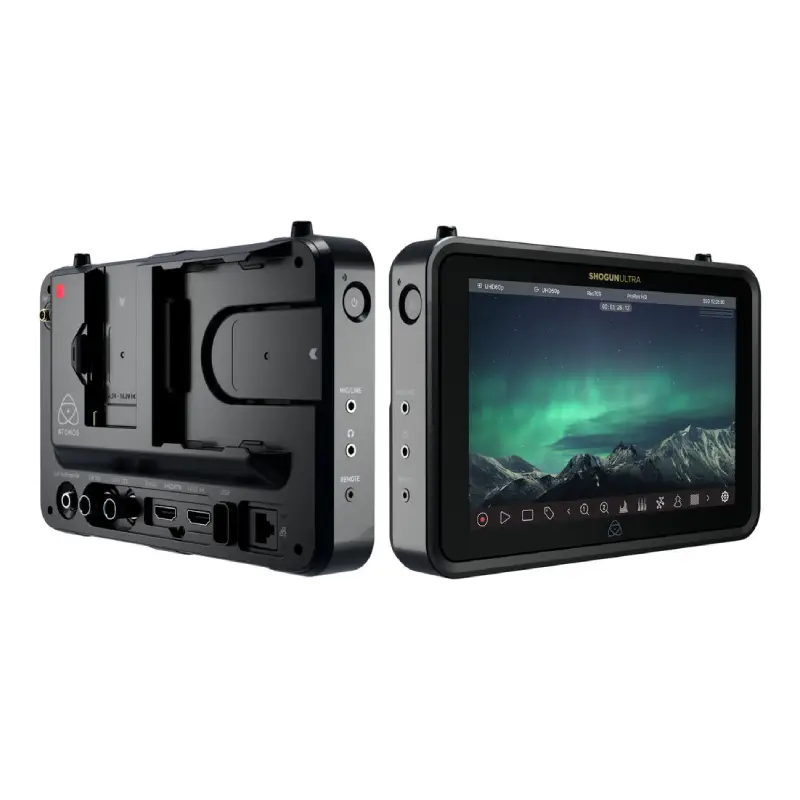

Inputs / Outputs

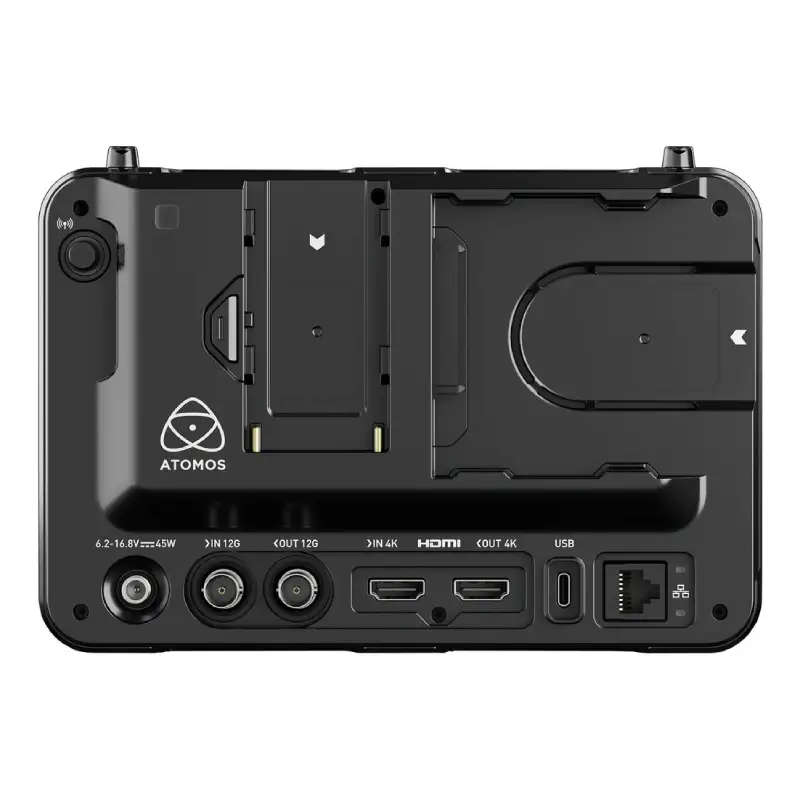

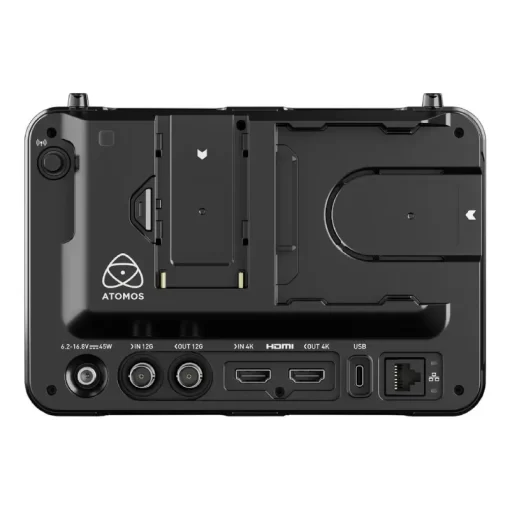

Video I/O	1 x HDMI 2.0 Input 1 x BNC (12G-SDI) Input 1 x HDMI 2.0 Output 1 x BNC (12G-SDI) Output
Embedded Audio	HDMI: 8-Channel SDI: 24-Channel

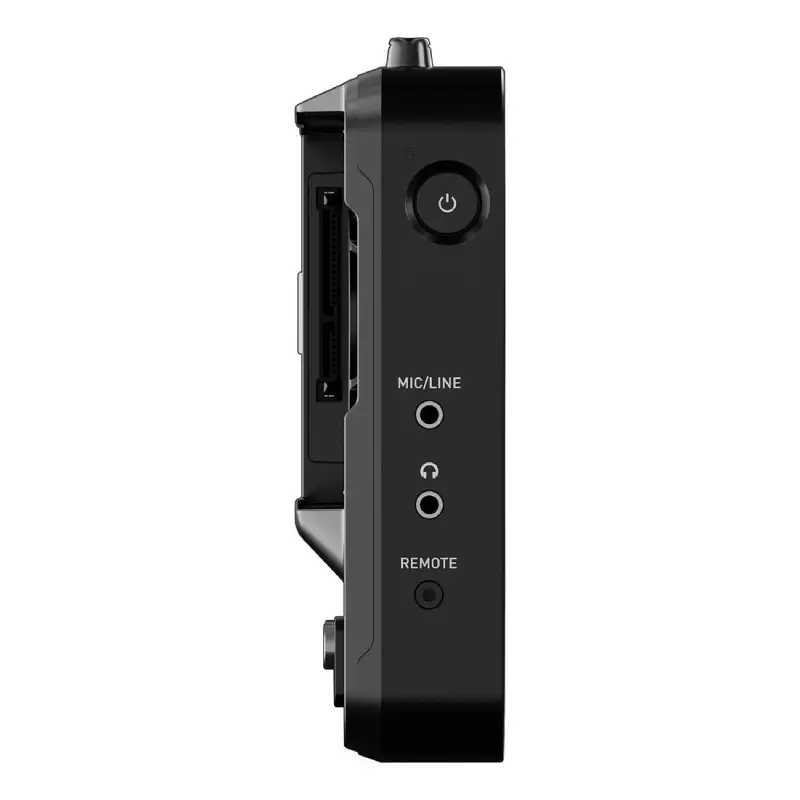

Audio I/O	1 x 1/8″ / 3.5 mm Headphone Output 1 x 1/8″ / 3.5 mm Input 1 x 1/8″ / 3.5 mm Output
Built-In Speaker	No
Power I/O	1 x Barrel Input
Other I/O	1 x 2.5 mm (LANC) 1 x USB-C (Serial) Input 1 x RJ45 (Gigabit Ethernet) Input
Media/Memory Card Slot	Single Slot: SSDmini/SSD with Master Caddy II/III
File System Support	exFAT
Wi-Fi	Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth	Yes

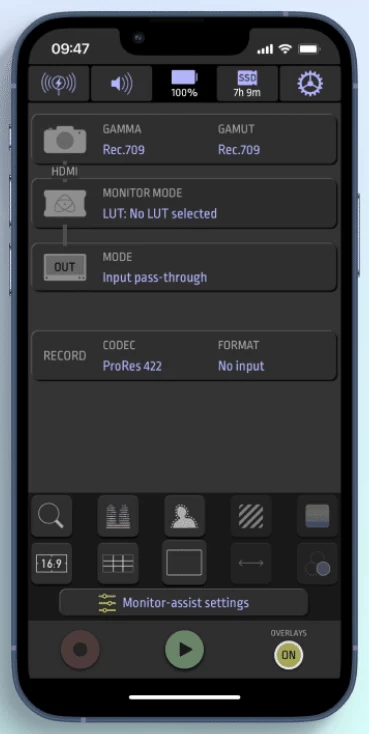

Mobile App Compatible	Yes: Android & iOS App Name: AtomRemote Functionality: Adjust Settings, Setup *As of September, 2023: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format	HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC) 8K Raw: 30 6K Raw: 60/30 4K Raw: 120 DCI 4K: 60 UHD 4K: 60 DCI 2K: 60 1080p: 120 1080i: 60/50 720p: 60
Gamma Curve	ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2
Video Signal Conversion	HDMI to SDI SDI to HDMI
Timecode Support	Yes

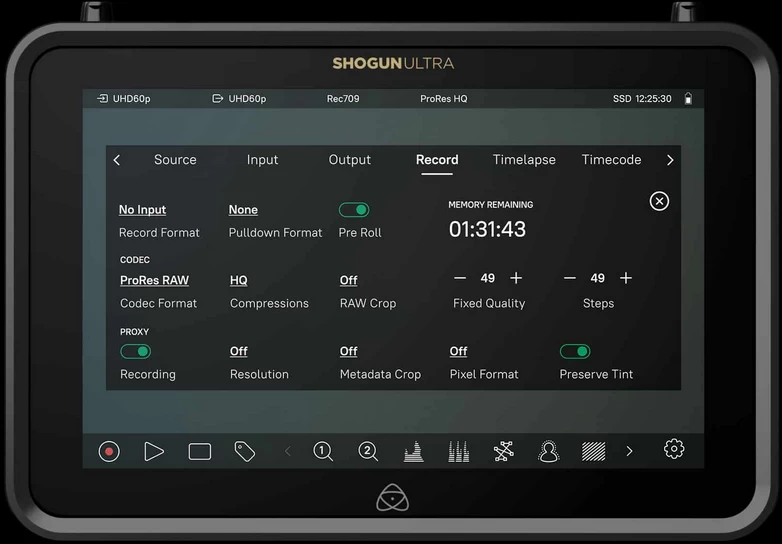

Recording
Pulldown Conversion	No
Camera Trigger	SDI, HDMI
Pre-Roll Record	No
Encoding Formats	x DNxHD H.265 ProRes
Metadata Tagging	Yes
Phantom Power	No
Power
DC Input Power	6.2 to 16.8 VDC
Built-In Battery	No
Battery Type	1 x L-Series
Mounting
Mounting	3 x 1/4″-20 Female 3 x 3/8″-16 Female
Environmental
Environmental Protection	No
Operating Temperature	40°C / 72°F
General
Material of Construction	Aluminum, Polycarbonate
Dimensions	198 x 133 x 40 mm / 7.8 x 5.2 x 1.6″
Weight	730 g / 1.6 lb
