Name: Blackmagic Design Videohub 10x10 12G
Brand: Blackmagic Design
SKU: 188982
Price: 59050 THB
Availability: OutOfStock

Availability : Out of stock

59,050 ฿

SKU: N/A Category: Video Capture-กล่องแปลงสัญญาณ Tags: Blackmagic Design, Videohub Brand: Blackmagic Design

จุดเด่นผลิตภัณฑ์

Routing Switcher Zero-Latency
อินพุต 10 x 12G-SDI / เอาต์พุต 10 x 12G-SDI
รองรับวิดีโอสูงสุด DCI 4K60
Combinesวิดีโอ SD, HD, UHD 4K และ DCI 4K
ปุ่มกด ลูกบิด และอีเธอร์เน็ต คอนโทล
หน้าจอ LCD แสดงสถานะ 2.2 นิ้ว
SDI Reclocking,ขนาดกะทัดรัด 1RU
รวมซอฟต์แวร์ Videohub Mac/Windows

Blackmagic Videohub 10×10 12G เป็นเราเตอร์วิดีโอแบบ Zero Latency ขั้นสูงที่รองรับการผสมผสานระหว่าง SD, HD และ Ultra HD บนเราเตอร์ในเวลาเดียวกัน มีอินพุต 12G-SDI 10 ช่องและเอาต์พุต 12G-SDI 10 ช่องพร้อมการเชื่อมต่ออ้างอิงในหน่วยแร็คขนาดเดียว จอ LCD ด้านหน้าช่วยให้คุณเห็นวิดีโอก่อนกำหนดเส้นทางและแสดงป้ายกำหนดเส้นทางและมาตรฐานวิดีโออย่างชัดเจน การกำหนดเส้นทางทำได้โดยการเลือกปุ่มโดยตรงและใช้ปุ่มควบคุมการหมุนขนาดใหญ่ที่มีคลัตช์อิเล็กทรอนิกส์ นอกจากนี้ยังมีการรีคล็อก SDI การควบคุมอีเทอร์เน็ตภายนอก และรองรับมาตรฐานวิดีโอ SDI ทั้งหมดสูงสุด 2160p60

Blackmagic Design Videohub 10×10 12G-Des1

Blackmagic Videohub 12G

The new Blackmagic Videohub 12G-SDI video routers let you connect all your equipment without creating a complex cable mess! Blackmagic Videohub routers support 12G-SDI so they allow you to connect and route any combination of SD, HD and Ultra HD on the same router at the same time. Plus they have zero latency so are perfect for live production and broadcast! The design features an elegant front panel with LCD for labels and even live video, shortcut buttons and a machined metal spin knob with soft rubber coating that lets you browse video sources. Ethernet is also included so you can remotely control the router using a range of external hardware or software control panels.

Blackmagic Design Videohub 10×10 12G-Des2

Eliminates Complex Cable Mess

Blackmagic Videohub 12G eliminates cable mess because you can plug all your SDI equipment into the router, then do connections electronically! You don’t need complex system diagrams for your studio because you can connect any video input to any video output, or even a single video input to multiple video outputs. This means monitors can view any source in the studio! You get total flexibility to handle constant change or even emergencies. It lets you use multiple HyperDeck recorders for redundant mastering. Or you can route video to multiple streaming processors for all broadcast platforms. Blackmagic Videohub 12G is also great for adding extra inputs to an ATEM switcher!

Blackmagic Design Videohub 10×10 12G-Des3

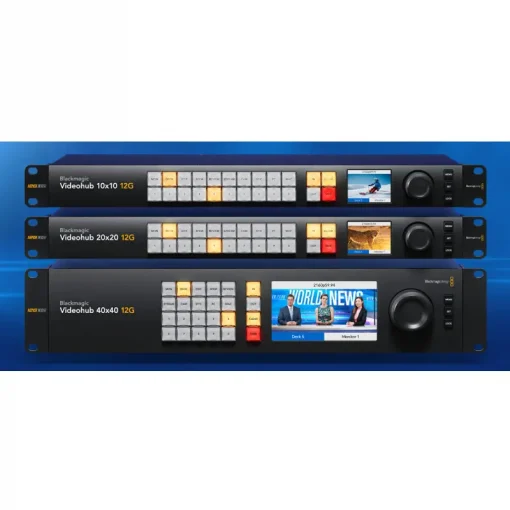

Blackmagic Videohub 10×10 12G

Advanced 12G-SDI 10×10 zero latency video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with LCD and machined spin knob, SDI re-clocking and external software control.

Blackmagic Videohub 20×20 12G

Larger 20×20 zero latency 12G-SDI video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with LCD and machined spin knob, SDI re-clocking and external software control.

Blackmagic Videohub 40×40 12G

Largest 40×40 zero latency 12G-SDI video router which supports any combination of SD, HD and Ultra HD on the router at the same time. Features built in control panel with large LCD and machined spin knob, SDI re-clocking and external control.

Blackmagic Design Videohub 10×10 12G-Des4

Get Router Control on Mac, Windows and iPad

If you need external router control that’s affordable, then Videohub Software Control is perfect because it can be downloaded free! Videohub Software Control is available for both Mac and Windows, so you can run it on the computers you’re already using for creative work. The software features large buttons that are easy to press. Each button can be customized to a router input, a router output, and has an icon assigned to help you identify it visually. The big buttons are great for use on a touchscreen PC, where the software becomes a large screen XY control panel! You can even download a version of the software for the Apple iPad!

Blackmagic Design Videohub 10×10 12G-Des12

Includes Videohub Setup Utility

When you first purchase Blackmagic Videohub 12G, all the video inputs and outputs will have simple default labels, however you can customize them to match the equipment you have connected! That’s why the Blackmagic Videohub 12G installer includes Videohub Setup software, which lets you customize the router input and output labels. You can even enable the take button to be used when changing sources, plus the take button can be enabled for each specific video output. The Videohub Setup also lets you program the buttons on the front panel, update the router software, or configure external hardware panels. The software supports Mac and Windows and can be connected via Ethernet or USB.

Blackmagic Design Videohub 10×10 12G-Des13

ที่มา : www.blackmagicdesign.com

สเปค Blackmagic Design Videohub 10×10 12G

Processing
Switching Type	Pushbutton, Software
Processing Resolution	DCI 4K at 60
Color Processing	8-Bit 4:2:2 10-Bit 4:2:2 12-Bit 4:4:4
Audio Processing	48 kHz / 24-Bit
Input
Video Inputs	10 x BNC (12G-SDI)
Input Video Format	SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio Input	SDI
Output
Video Outputs	10 x BNC (12G-SDI)
Output Video Format	SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Embedded Audio Output	SDI
Connectivity
Other I/O	1 x RJ45 LAN 1 x USB-C
Video Standard Compliance	SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656
Display
Display Size	2.2″
Hardware
OS Compatibility	macOS 12.0 macOS 13.0 or Later Windows 10 (64-Bit Only) Windows 11 *As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi	None
Bluetooth	None
Power
Power I/O	1 x IEC C14 (100 to 240 VAC) Input
Power Consumption	20.8 W
Environmental
Operating Temperature	0 to 40°C / 32 to 104°F
Storage Temperature	-20 to 60°C / -4 to 140°F
Operating Humidity	0 to 90% (Non-Condensing)
General
Rack Form Factor	1 RU
Dimensions	48.3 x 23.6 x 4.42 cm / 19 x 9.3 x 1.74″
Weight	3.01 kg / 6.64 lb
