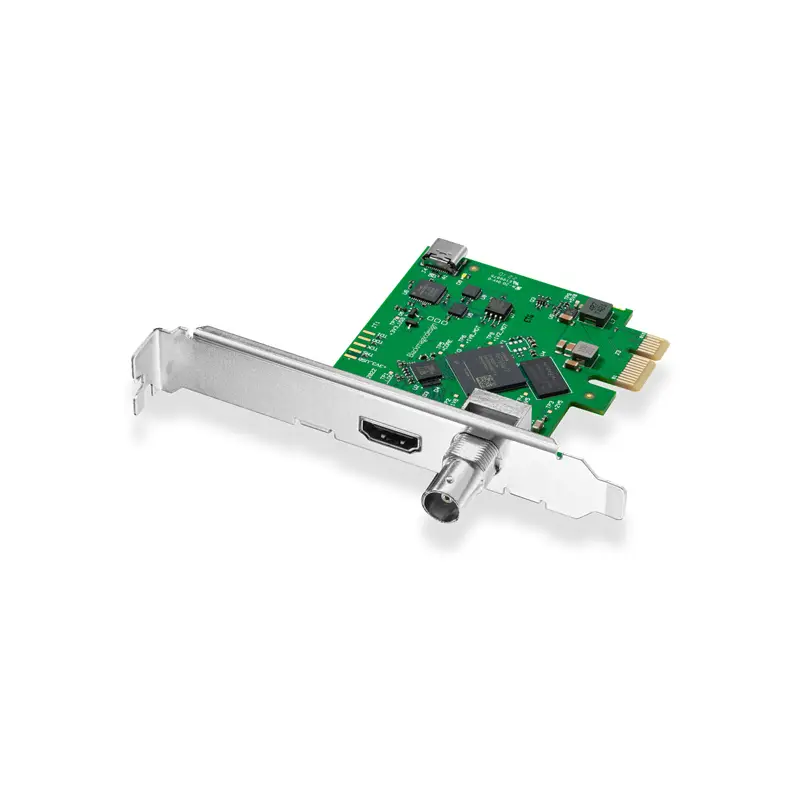

Blackmagic Design DeckLink Mini Recorder HD

Name: Blackmagic Design DeckLink Mini Recorder HD
Brand: Blackmagic Design
SKU: 177057
Price: 5900 THB
Availability: InStock

5,900 ฿

SKU: N/A Category: Video Capture-กล่องแปลงสัญญาณ Tags: Blackmagic Design, Decklink, Recorder HD Brand: Blackmagic Design

จุดเด่นผลิตภัณฑ์

การบันทึก Broadcast-Quality
การ์ดสล็อต 1-Lane (สำหรับ 1-16 Lanes)
อินพุต SDI และ HDMI
รองรับDCIสูงสุด 2K ผ่าน SDI
รองรับความละเอียดสูงสุด 1080p60 ใน HDMI
วิดีโอ 8-, 10-, 12 บิต, 4:2:2 / 4:4:4
REC 601/709 รองรับColor Space
รองรับ Mac, Windows และ Linux

สเปค Blackmagic Design DeckLink Mini Recorder HD

Host Connection	PCIe (Length Unspecified)
Input

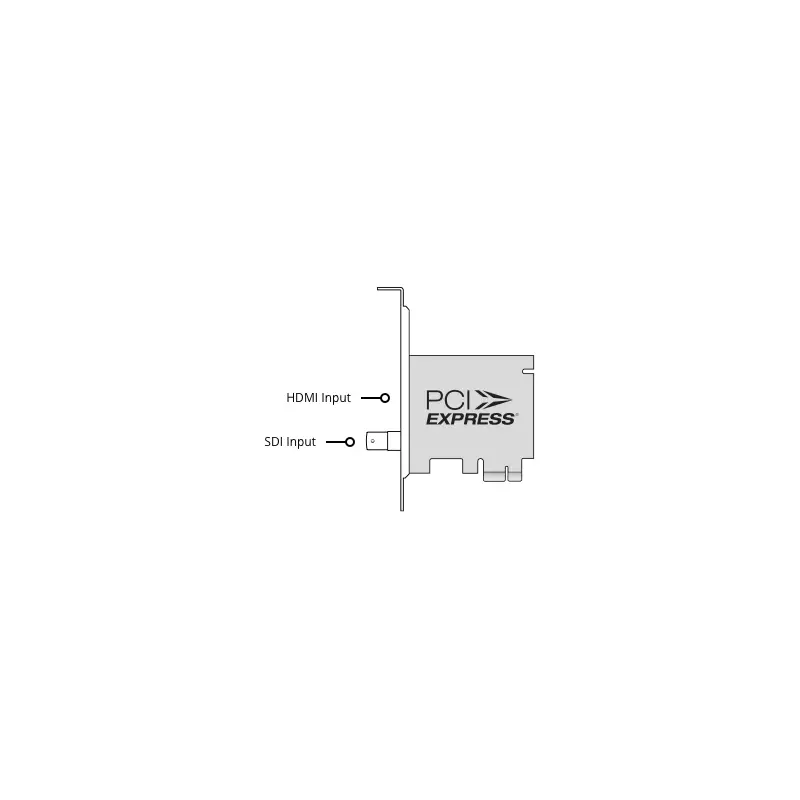

Video Input Connectors	1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0)
Input Video Format	SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:4:4 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Simultaneous Multi-Input Support	Not Specified by Manufacturer
Audio Input Connectors	None
Embedded Audio Input	SDI: 16-Channel HDMI: 8-Channel
Output
Embedded Audio Output	None
Standards
Video Standard Compliance	SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR Compatibility	Not Specified by Manufacturer
Hardware
OS Compatibility	macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux *As of July, 2022: check with manufacturer for the most up-to-date compatibility
Power Consumption	Device: 3 W
Environmental
Operating Temperature	5 to 40°C / 41 to 104°F
Storage Temperature	-20 to 45°C / -4 to 113°F
Operating Humidity	0 to 90% (Non-Condensing)
Storage Humidity	0 to 90% (Non-Condensing)
General

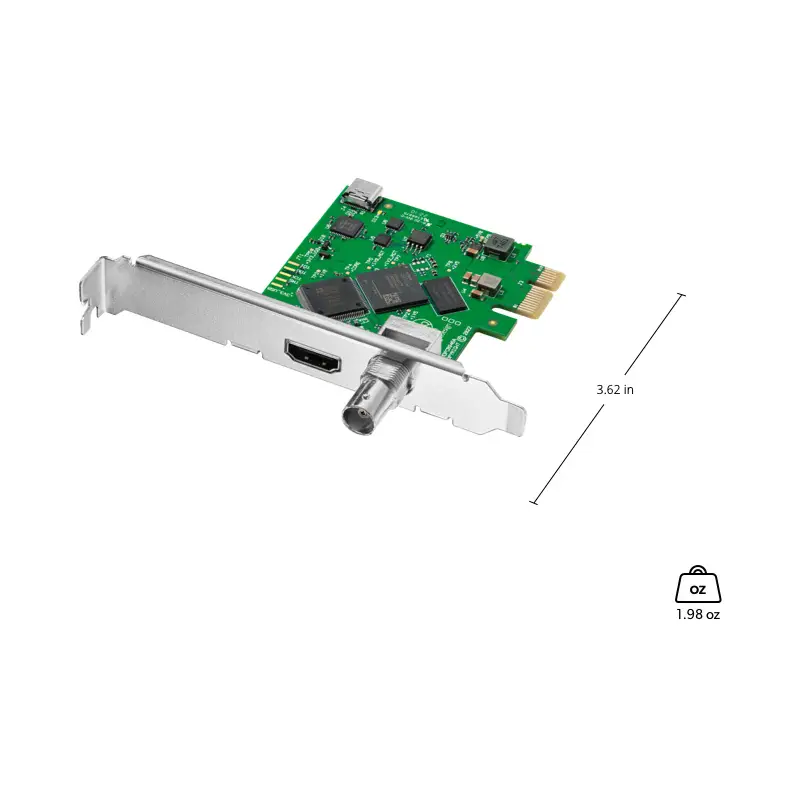

Dimensions	91.95 mm / 3.62″
Weight	56 g / 1.98 oz

Blackmagic Design DeckLink Mini Recorder HD-Cover

ที่มา : www.blackmagicdesign.com
