DeviceWell HDS7105 Super Mini Switcher

DeviceWell

Share หน้านี้ :

12,990 ฿

จุดเด่นผลิตภัณฑ์

  • 4x HDMI Input + 1x Display Port Input can be switched to
  • 2x HDMI PGM Output + 1x HDMI Multi View Output
  • 2x 3.5mm Stereo Mic-in Port,
  • RCA-in
  • LAN, RJ-45 and Tally lights
  • with 1/4 screw.
  • 900 inches heavier than a gram, small, portable, portable at all

Switch HDS7105 จะรวมสัญญาณทั้งหมดมาในกล่องนี้เพื่อตัดสวิตช์ทั้งภาพและเสียงจากกล้องเสียบไมโครโฟน ภาพถ่ายจากกล้องจะถูกส่งไปยังโน้ตบุ๊คที่มีพอร์ต HDMI เพื่อเชื่อมต่อกับหน้าจอเพื่อดูตัดเพื่อสลับดูได้หลายมุมมองและ มี HDMI Out 2 พอร์ต !!ทั้งไลฟ์และบันทึก ไปยัง Monitorเรียกว่ามีพอร์ตที่สมบูรณ์ในราคาที่คุ้มค่า

สเปค DeviceWell HDS7105 Super Mini Switcher

Model HDS7105
Channel 4-Channel
แบรนด์ Devicewell
รับประกัน 1 ปี
Weight (kg) 1
Country of Manufacture จีน

Functional characteristics

√ Portable integrated design √ Support audio follow, mix function
√ Metal body, high strength and light weight √ Support HDMI audio de-embedding
√ Integrated control keyboard √ PGM output: 2 HDMI
√ Support up to 4 HDMI + 1 DP inputs √ Multiview output: 1 HDMII
√ 2 stereo MIC inputs √ Support special effects switching such as MIX / FADE
√ 2-CH RCA audio input √ Support CUT hard cut, support AUTO special effect switching
√ 1 LINE OUT output √ Support Tally / Network remote control

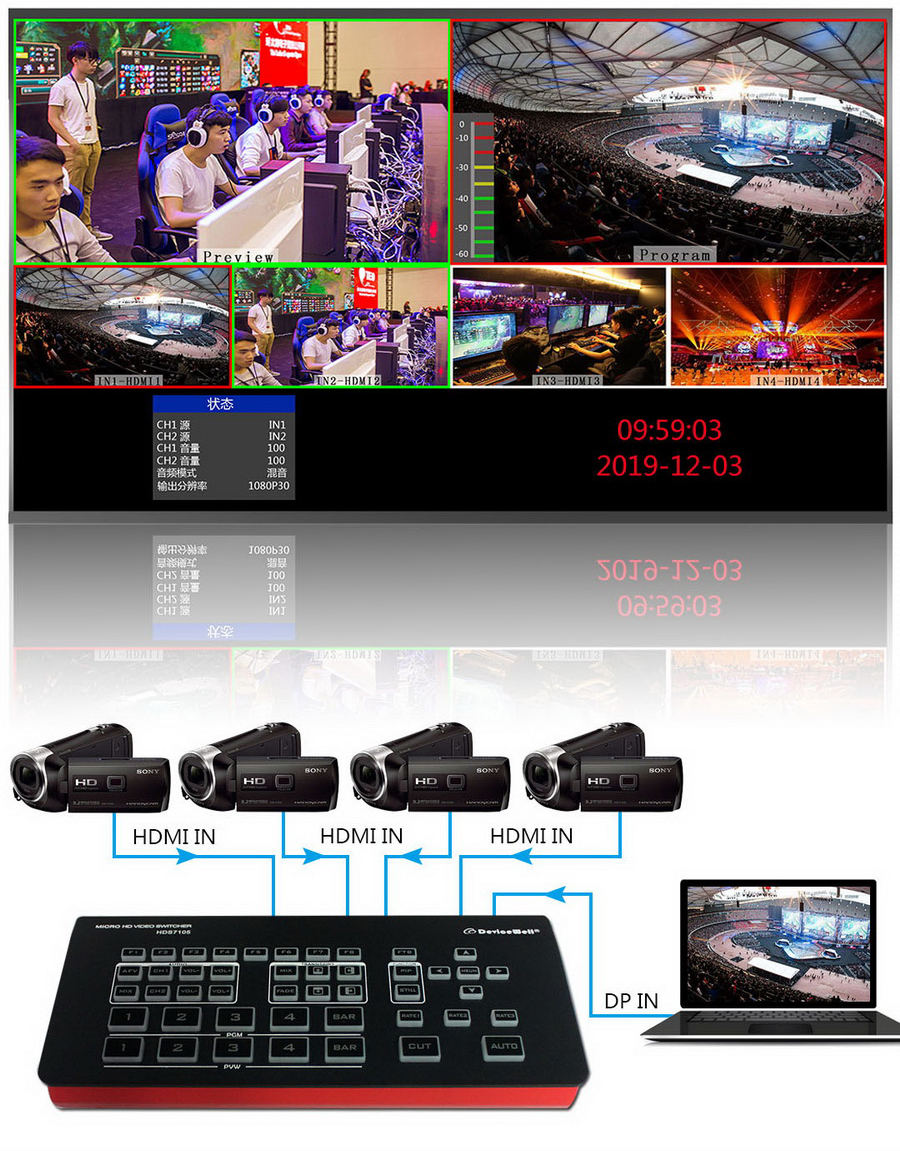

4*HDMI+1*DP

5-CH Switcher–HDS7105 Support 4 * HDMI + 1 * DP signal input, can output 4 video signals simultaneously to the multi-screen monitor for display, the fourth signal can also be arbitrarily selected HDMI / DP signal input.

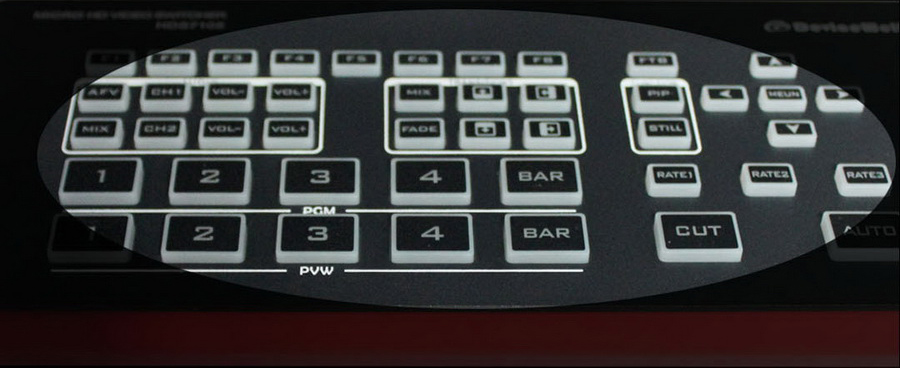

Silicone buttons

5-CH Switcher–HDS7105 Devicewell is first silicone key switcher is this five-channel switcher HDS7105. The silicone uses professional high-activity adsorption materials and environmentally friendly materials. The surface is smooth, light-transmitting and waterproof.

Machine innovation

5-CH Switcher–HDS7105 Panel interface comprehensive innovation and optimization

5-CH Switcher–HDS7105 Panel interface comprehensive innovation and optimization The function area F1-F8 has been added to the keypad. At present, the functions F1 / F2 / F3 have been optimized and can be used, and the remaining key functions are added and improved later. With these 8 function keys, the functions of this switcher are more flexible and powerful. Reordering the positions of the interface holders without changing the interface functions makes the interface panel look more neat and comfortable, and the power interface facing right is more in line with people’s operating habits.

USB3.0 operating

5-CH Switcher–HDS7105 Support USB3.0 streaming video output Connect the switcher to the computer through the USB data cable, and you can use the OBS software. You can also directly connect the switcher to your mobile phone through a USB data cable, as long as you download the corresponding USB camera APP, you can directly use it. In this way, the recorded or live video can be pushed directly to the audience through the corresponding software.

As long as the camera recording picture or live picture signal is connected to the switcher HDS7105, and then connected to the mobile phone with UVC function through a USB data cable, you can directly watch the live PGM video.

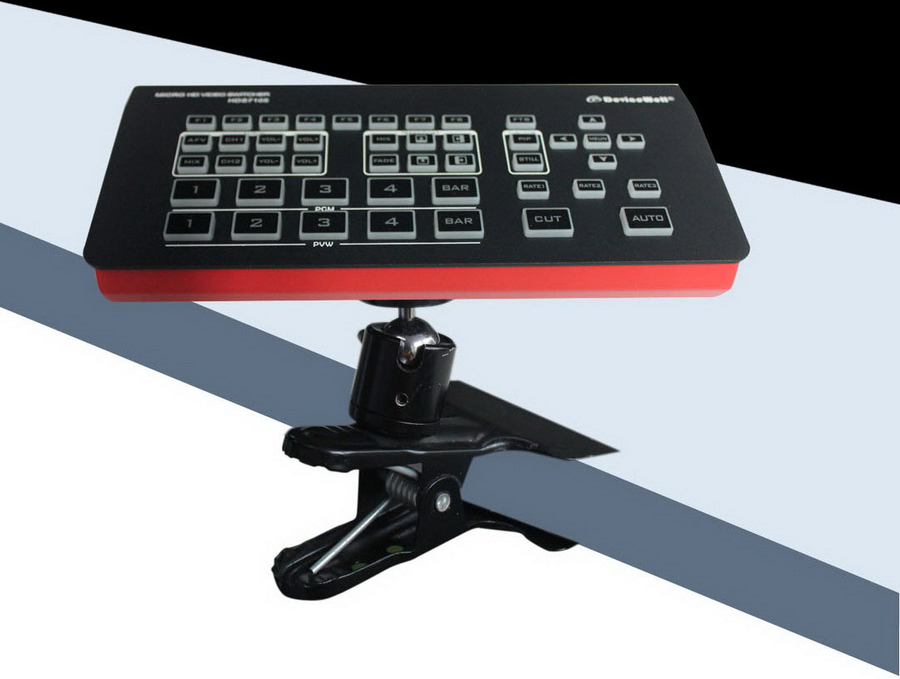

1/4 screws

5-CH Switcher–HDS7105 A 1 / 4-20 inch nut is installed on the bottom of the housing, which is convenient for users to fix the switcher anywhere.

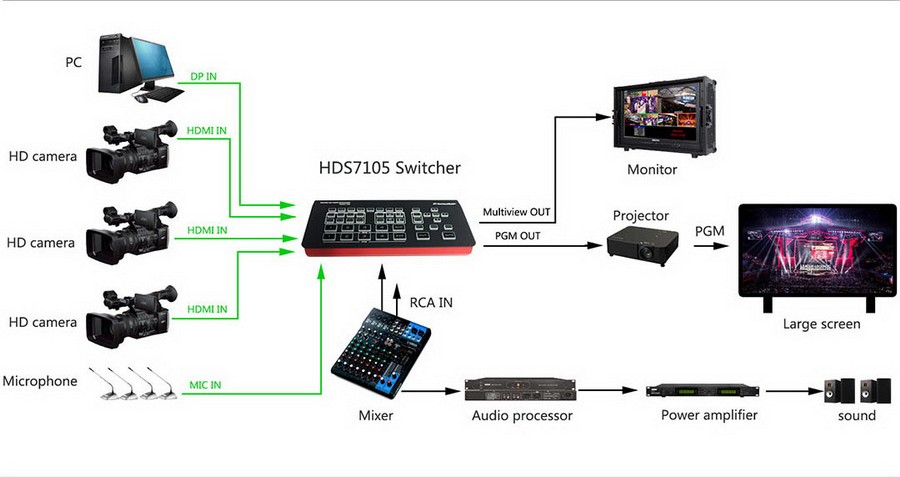

Application

HDS7105 supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external preview signal can be output simultaneously. HDS7105 supports HDMI embedded audio + external analog audio. After mixed processing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected according to requirements, which is quite flexible.

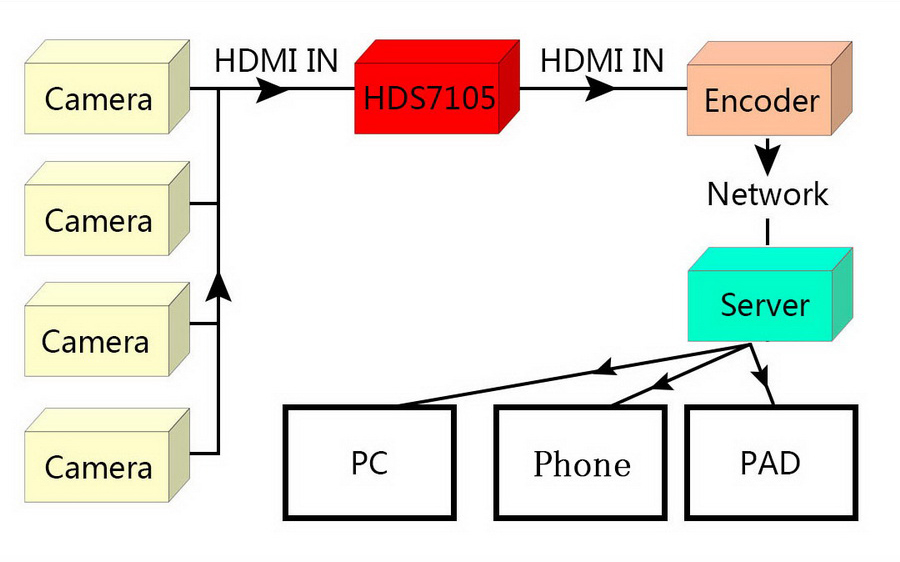

Scenes Streaming webcast

Devicewell HDS7105 is a compact and cost-effective HD / SD video guide product. With simple operation thinking, ordinary users without professional training can easily understand and use it freely. It supports up to 1080P60 screen. Especially suitable for streaming media live broadcast.

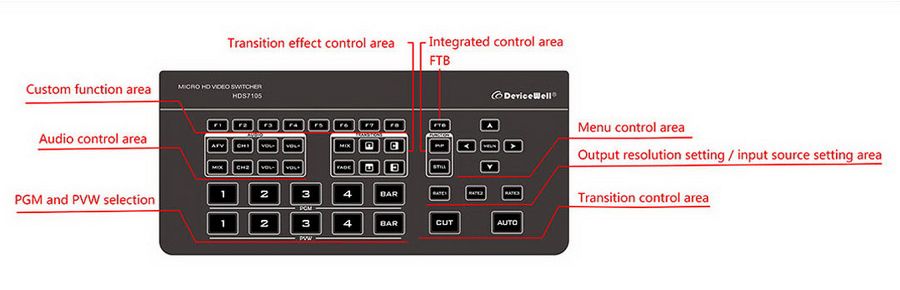

Panel introduction

Interface Description

Size

5-CH Switcher–HDS7105
Size:236*105*47mm
