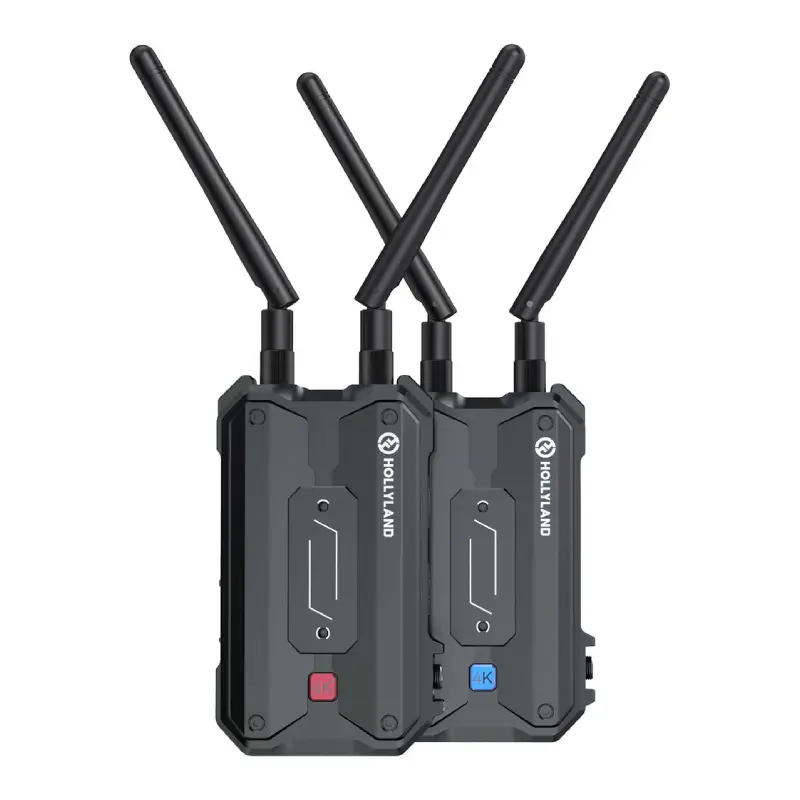

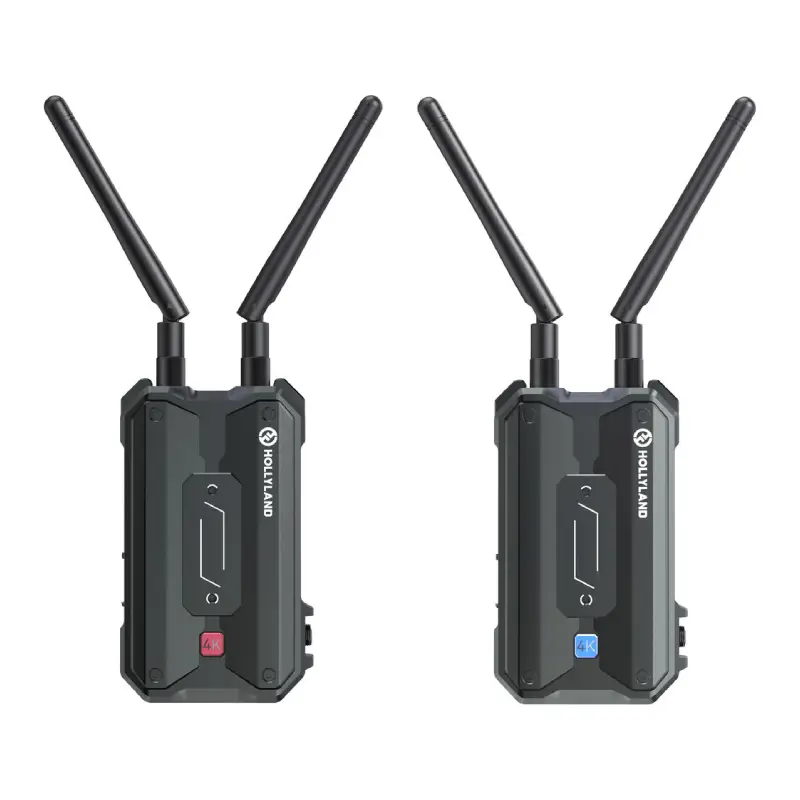

Hollyland Pyro H 4K HDMI Wireless Video Transmission System

Name: Hollyland Pyro H 4K HDMI Wireless Video Transmission System
Brand: Hollyland
SKU: 209477
Availability: InStock

Original price was: 13,490 ฿.Current price is: 12,490 ฿.

In Stock

Choose

Clear

จุดเด่นผลิตภัณฑ์

Hollyland Pyro H-Detail1
Hollyland Pyro H-Detail9
Hollyland Pyro H-Detail10
Hollyland Pyro H-Detail8

Inputs / Outputs
Antenna I/O	Transmitter/Receiver: 2x RP-SMA Female
Video I/O	Transmitter: 1x HDMI 1.4b Input Transmitter: 1x HDMI 1.4b Output Receiver: 1x HDMI 1.4b Output
Embedded Audio	HDMI
Audio I/O	No
Power I/O	Transmitter/Receiver: 1x Barrel Input
Encryption	No
Wireless
Wireless Range	396.2 m / 1300′ (Line-of-Sight) 198.1 m / 650′ (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	US: 5.15 to 5.25 GHz
Latency	60 ms
RF Power	23 dBm
RF Sensitivity	-85 dBm
Wi-Fi	Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)
Bluetooth	No
Mobile App Compatible	Yes: Android & iOS
Format Support
Video Format	HDMI UHD 4K: 30/25/24 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Wireless Video Compression	Uncompressed
Timecode Support	Yes
Power
Input Power	6 to 16 VDC
Power Consumption	Transmitter: 7 W Receiver: 4 W
Mounting

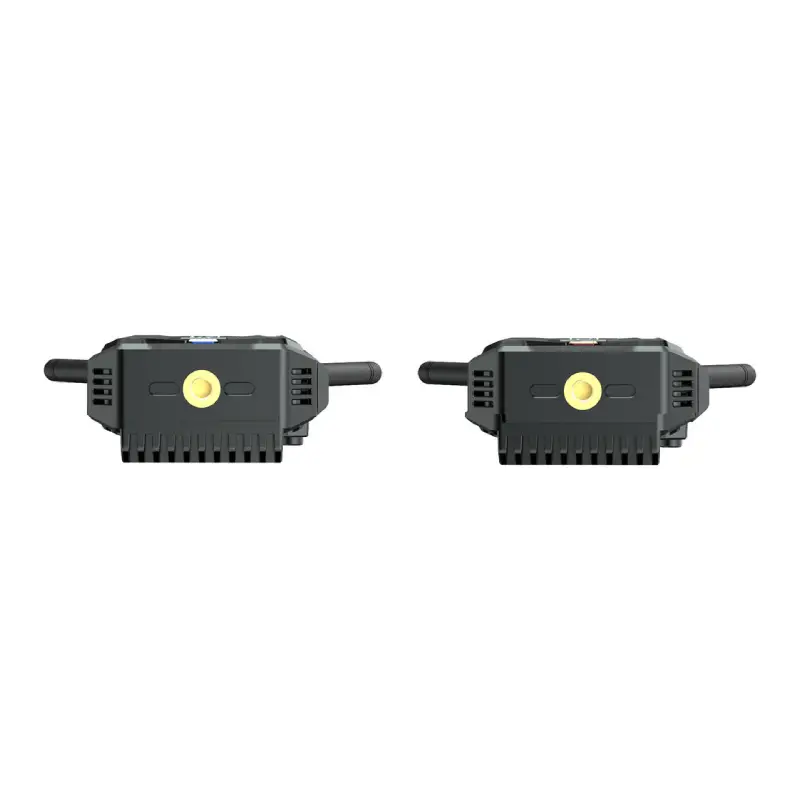

Mounting	1x 1/4″-20 Female
Environmental
Environmental Protection	No
Certifications	No
General
Dimensions	Transmitter/Receiver: 109 x 62.3 x 33.4 mm / 4.3 x 2.5 x 1.3″
Weight	Transmitter/Receiver: 192 g / 6.8 oz

Specification
