DJI FPV Explorer Combo
31,900 ฿
Description
จุดเด่นผลิตภัณฑ์
- แว่นตา DJI Goggles Integra ภาพชัด 1080p/100fps
- รีโมท DJI FPV Remote Comtroller 2
- เซนเซอร์กล้องขนาด 1/2.3” CMOS
- ถ่ายภาพนิ่งความละเอียด 12 ล้านพิกเซล ถ่ายวิดีโอสูงสุด 4K/60fps
- เลนส์มุมกว้างพิเศษ FOV 150° f/2.8
- ต้านทางแรงลม ระดับ 6 ระบบกันสั่น RockSteady
- ระยะเวลาบินนานสูงสุด 20 นาที
- บินเร็ว 140 กม./ชม. บินไกล 4-6 กม. ในไทย
- ระบบตรวจจับสิ่งกีดขวางด้านหน้าและด้านล่าง
- โหมดซัพพอร์ตการบิน 3 รูปแบบ S, N, M
- ระบบส่งสัญญาณภาพ DJI O3 ดีเลย์ภาพเพียง 28 มิลลิวินาที
- ปุ่มเบรกฉุกเฉิน เพื่อหยุดการเคลื่อนที่อัตโนมัติ
- DJI Virtual Flight แอปพลิเคชั่นฝึกบินสถานการณ์จำลอง
- ระบบแจ้งเตือนเมื่อมีโดรนหรือเครื่องบินบังคับลำอื่นกำลังเข้าใกล้คุณ
- รองรับเมมโมรี่การ์ดสงสุด 256GB (DJI FPV Drone)
- รองรับเมมโมรี่การ์ดสงสุด 512GB (DJI Goggles Integra)
- ใช้งานร่วมกับแอปพลิเคชั่น DJI Fly
สเปค DJI FPV Explorer Combo
| Camera | Sensor | 1/2.3-inch CMOS Effective Pixels: 12 MP |
| Camera | Lens | FOV: 150° Equivalent Focal Length: 14.66 mm Aperture: f/2.8 Focus Mode: FF Focus Range: 0.6 m to ∞ |
| Camera | ISO Range | 100-12800 |
| Camera | Shutter Speed | 1/50-1/8000 s |
| Camera | Still Photography Mode | Single Shot |
| Camera | Max Image Size | 3840×2160 |
| Camera | Photo Format | JPEG |
| Camera | Video Resolution | 4K: 3840×2160@50/60fps FHD: 1920× 1080@50/60/100/120fps |
| Camera | Video Format | MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Camera | Max Video Bitrate | 120 Mbps |
| Camera | Color Mode | Standard, D-Cinelike |
| Camera | EIS | Supported |
| Camera | Distortion Correction | Supported |
| Camera | Supported File System | exFAT (recommended) FAT32 |
| Gimbal | Mechanical Range | Tilt: -65° to 70° |
| Gimbal | Controllable Range | Tilt: -50° to 58° |
| Gimbal | Stabilization | Single-axis (tilt), electronic roll axis |
| Gimbal | Max Control Speed | 60°/s |
| Gimbal | Angular Vibration Range | ±0.01° (Normal mode) |
| Gimbal | Electronic Roll Axis | Supported (can stabilize footage when the aircraft is tilted at up to 10°) |
| Aircraft | Takeoff Weight | Approx. 795 g |
| Aircraft | Dimensions | 255×312×127 mm (with propellers) 178×232×127 mm (without propellers) |
| Aircraft | Diagonal Distance | 245 mm |
| Aircraft | Max Ascent Speed | M mode: No limit S mode: 15 m/s N mode: 8 m/s |
| Aircraft | Max Descent Speed | M mode: No limit S mode: 10 m/s N mode: 7 m/s |
| Aircraft | Max Horizontal Speed <sup>[1]</sup> | N mode: 15 m/s S mode: 27 m/s M mode: 39 m/s (27 m/s in Mainland China) |
| Aircraft | Max Horizontal Acceleration | 0-100 kph: 2 s (in windless conditions while flying in M mode) |
| Aircraft | Max Flight Altitude | 6000 m |
| Aircraft | Max Flight Time | Approx. 20 mins (measured while flying at 40 kph in windless conditions) |
| Aircraft | Max Hovering Time | Approx. 16 mins (measured when flying in windless conditions) |
| Aircraft | Max Flight Distance | 16.8 km (measured in windless conditions) |
| Aircraft | Max Wind Speed Resistance | Level 6 |
| Aircraft | Operating Temperature | -10° to 40° C (14° to 104° F) |
| Aircraft | Transmitter Power (EIRP) | 2.400-2.4835 GHz FCC: ≤ 31.5dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 Ghz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 25.5 dBm |
| Aircraft | Antennas | Four antennas |
| Aircraft | Global Navigation Satellite System | GPS + GLONASS + Galileo |
| Aircraft | Hovering Accuracy Range | Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GPS positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with GPS positioning) |
| Aircraft | Supported SD Cards | microSD (up to 256 GB) |
| Aircraft | Internal Storage | N/A |
| Sensing System | Forward (Binocular) | Precision Measurement Range: 0.5-18 m Obstacle Sensing: Available in N mode only FOV: Horizontal 56°, Vertical 71° |
| Sensing System | Downward (Binocular + ToF) | ToF Effective Measurement Height: 10 m Precise Hovering Range: 0.5-15 m Vision Sensor Hovering Range 0.5-30 m |
| Sensing System | Downward Auxiliary Light | Single LED |
| Sensing System | Operating Environment | Surfaces with discernible patterns Diffuse reflectivity > 20% (e.g. walls, trees, people) Adequate lighting (lux > 15) |
| Charger | Input | 100-240V, 50/60 Hz, 1.8 A |
| Charger | Output | Battery Port: 25.2 V ± 0.1 V 3.57 A ± 0.1 A (high current) 1 A ± 0.2 A (low current) USB Port: 5V/2A (×2) |
| Charger | Rated Power | 86 W |
| Intelligent Flight Battery | Battery Capacity | 2000 mAh |
| Intelligent Flight Battery | Nominal Voltage | 22.2 V |
| Intelligent Flight Battery | Max Charging Voltage | 25.2 V |
| Intelligent Flight Battery | Type | LiPo 6S |
| Intelligent Flight Battery | Energy | 44.4 Wh@0.5C |
| Intelligent Flight Battery | Discharge Rate | Typical: 7C |
| Intelligent Flight Battery | Weight | Approx. 295 g |
| Intelligent Flight Battery | Charging Temperature | 5° to 40° C (41° to 104° F) |
| Intelligent Flight Battery | Max Charging Power | 86 W |
| Video Transmission | Operating Frequency[2] | 2.400-2.4835 GHz 5.725-5.850 GHz |
| Video Transmission | Communication Bandwidth | Max 40 MHz |
| Video Transmission | Live View Mode | Low-Latency Mode: 810p/100fps, with latency down to 30 ms* High-Quality Mode: 810p/60fps, with latency down to 40 ms* * The 150° FOV is only available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°. |
| Video Transmission | Max Video Bitrate | 50 Mbps |
| Video Transmission | Max Transmission Distance [3] | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Video Transmission | Audio Transmission | Supported |
| DJI FPV Goggles V2 | Weight | Approx. 420 g (headband and antennas included) |
| DJI FPV Goggles V2 | Dimensions | 184×122×110 mm (antennas excluded) 202×126×110 mm (antennas included) |
| DJI FPV Goggles V2 | Screen Size | 2-inches (×2) |
| DJI FPV Goggles V2 | Screen Refresh Rate | 144 Hz |
| DJI FPV Goggles V2 | Operating Frequency | 2.400-2.4835 GHz
5.725-5.850 GHz |
| DJI FPV Goggles V2 | Transmitter Power (EIRP) | 2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm |
| DJI FPV Goggles V2 | Communication Bandwidth | Max 40 MHz |
| DJI FPV Goggles V2 | Live View Modes | Low-Latency Mode: 810p/100fps, with latency down to 30 ms* High-Quality Mode: 810p/60fps, with latency down to 40 ms* * The 150° FOV is only available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°. |
| DJI FPV Goggles V2 | Max Video Bitrate | 50 Mbps |
| DJI FPV Goggles V2 | Max Transmission Distance | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| DJI FPV Goggles V2 | Video Format | MOV (Codec: H.264) |
| DJI FPV Goggles V2 | Audio Transmission | Supported |
| DJI FPV Goggles V2 | Supported Video Playback Format | MP4, MOV, MKV (H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3) |
| DJI FPV Goggles V2 | Operating Temperature | 0° to 40° C (32° to 104° F) |
| DJI FPV Goggles V2 | Power Input | Dedicated DJI Goggles batteries |
| DJI FPV Goggles V2 | FOV | 30° to 54°, adjustable Image size: 50-100% |
| DJI FPV Goggles V2 | Interpupillary Distance Range | 58-70 mm |
| DJI FPV Goggles V2 | Supported SD Cards | microSD (up to 256 GB) |
| DJI FPV Goggles V2 Battery | Capacity | 1800 mAh |
| DJI FPV Goggles V2 Battery | Voltage | Max 9 V |
| DJI FPV Goggles V2 Battery | Type | LiPo 2S |
| DJI FPV Goggles V2 Battery | Energy | 18 Wh |
| DJI FPV Goggles V2 Battery | Charging Temperature | 0° to 45° C (32° to 113° F) |
| DJI FPV Goggles V2 Battery | Max Charging Power | 10 W |
| DJI FPV Goggles V2 Battery | Operating Time | Approx. 110 mins (using screen brightness of level 6 and tested in a 25°C/77°F environment) |
| DJI Goggles Integra | Weight | Approx. 410 g (battery included) |
| DJI Goggles Integra | Dimensions | With antennas folded: 170×104×75 mm (L×W×H) With antennas unfolded: 205×104×104 mm (L×W×H) |
| DJI Goggles Integra | Screen Size (single screen) | 0.49 inch |
| DJI Goggles Integra | Resolution (single screen) | 1920×1080 |
| DJI Goggles Integra | Screen Refresh Rate | Up to 100 Hz |
| DJI Goggles Integra | Interpupillary Distance Range | 56-72 mm |
| DJI Goggles Integra | FOV (single screen) | 44° |
| DJI Goggles Integra | Video Format | MOV |
| DJI Goggles Integra | Supported Video Playback Format | MP4, MOV (codec: H.264, H.265; audio format: AAC, PCM) |
| DJI Goggles Integra | Operating Temperature | -10° to 40° C (14° to 104° F) |
| DJI Goggles Integra | Power Input | Built-in battery |
| DJI Goggles Integra | Supported SD Cards | microSD (up to 512 GB) |
| DJI Goggles Integra | Operating Frequency | 2.4000-2.4835 GHz 5.725-5.850 GHz The 5.8GHz frequency band is currently banned in certain countries and regions. For details, please refer to local laws and regulations. |
| DJI Goggles Integra | Transmitter Power (EIRP) | 2.4000-2.4835 GHz: 30 dBm (FCC) 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: 30 dBm (FCC) 23 dBm (SRRC) 14 dBm (CE/KC) |
| DJI Goggles Integra | Live View Mode | 1080p/100fps, with latency down to 30 ms 1080p/60fps, with latency down to 40 ms Measured in an open outdoor environment without interference. Actual data varies depending on aircraft model. |
| DJI Goggles Integra | Max Transmission Distance | 10 km (FCC) 6 km (CE) 6 km (SRRC) |
| DJI Goggles Integra | Max Video Bitrate | 50 Mbps Measured in an open outdoor environment without interference. Actual data varies depending on operating environment. |
| DJI Goggles Integra | Weight | Approx. 185 g (headband included) |
| DJI Goggles Integra | Dimensions | 120×51×71 mm (L×W×H) |
| DJI Goggles Integra | Capacity | 2450 mAh |
| DJI Goggles Integra | Voltage | 5.6-8.4 V |
| DJI Goggles Integra | Type | Li-ion |
| DJI Goggles Integra | Chemical System | LiNiMnCoO2 |
| DJI Goggles Integra | Energy | 17.64 Wh |
| DJI Goggles Integra | Charging Temperature | 5° to 45° C (41° to 113° F) |
| DJI Goggles Integra | Max Charging Power | 15 W (charging when powered off) |
| DJI Goggles Integra | Operating Time | Approx. 2 hours |
| DJI FPV Remote Controller 2 | Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
| DJI FPV Remote Controller 2 | Transmitter Power (EIRP) | 2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm |
| DJI FPV Remote Controller 2 | Max Transmission Distance | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| DJI FPV Remote Controller 2 | dimensions | 190×140×51 mm |
| DJI FPV Remote Controller 2 | Weight | 346 g |
| DJI FPV Remote Controller 2 | Operating Time | Approx. 9 hours. |
| DJI FPV Remote Controller 2 | Charging Time | 2.5 hours |
| Memory Card | Supported SD Cards | microSD card The aircraft and DJI FPV Goggles V2 support up to 256GB capacity, whereas DJI Goggles Integra supports up to 512GB capacity. It is recommended to use a UHS-I Speed Grade 3 microSD card. |
| Memory Card | Recommended microSD Cards | SanDisk High Endurance U3 V30 64GB microSDXC SanDisk Extreme PRO U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 128GB microSDXC SanDisk Extreme U3 V30 A2 256GB microSDXC Lexar 667x V30 128GB microSDXC Lexar High Endurance 128GB U3 V30 microSDXC Samsung EVO U3 (Yellow) 64GB microSDXC Samsung EVO Plus U3 (Red) 64GB microSDXC Samsung EVO Plus U3 256GB microSDXC Netac 256GB U3 A1 microSDXC |
| Other | Footnotes | 1. Max horizontal speed is subject to local laws and regulations. Always abide by local laws and regulations when flying. 2. Due to local policy and regulation restrictions, the 5.8GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time. 3. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to any RTH prompts during actual flight. Max one-way communication distance of DJI FPV in countries/regions of different standards: FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions. SRRC: Mainland China; CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions. MIC: Japan. |

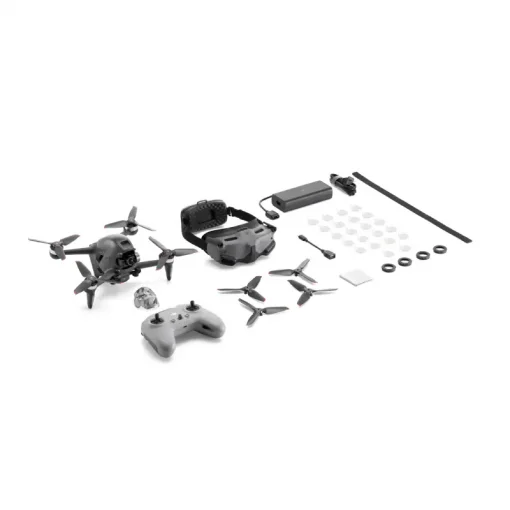

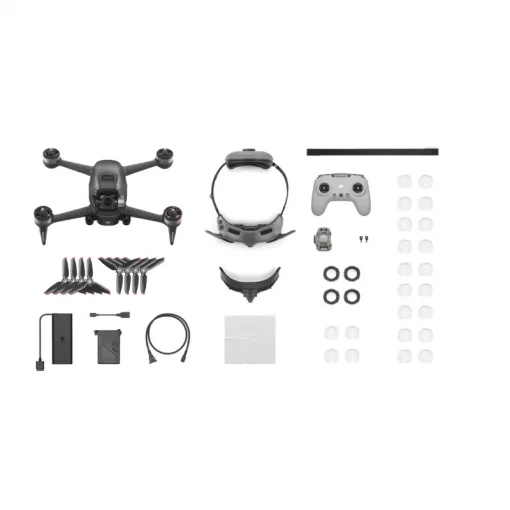

อุปกรณ์ในกล่อง
| DJI FPV Drone | 1 |
| DJI FPV Intelligent Flight Battery | 1 |
| DJI FPV Propellers (Pair) | 4 |
| DJI FPV Gimbal Protector | 1 |
| DJI FPV AC Power Adapter | 1 |
| DJI FPV AC Power Cable (EU) | 1 |
| DJI FPV AC Power Cable (UK) | 1 |
| DJI FPV AC Power Cable (CN) | 1 |
| DJI FPV Remote Controller 2 | 1 |
| DJI Goggles Integra | 1 |
| USB-C OTG Cable | 1 |
| DJI Goggles Integra Eyeglass Frames (Pair) | 2 |
| DJI Goggles Integra Corrective Lenses (Pair) | 11 |
| DJI Goggles Integra Top Headband | 1 |
| Lens Cleaning Cloth | 1 |
