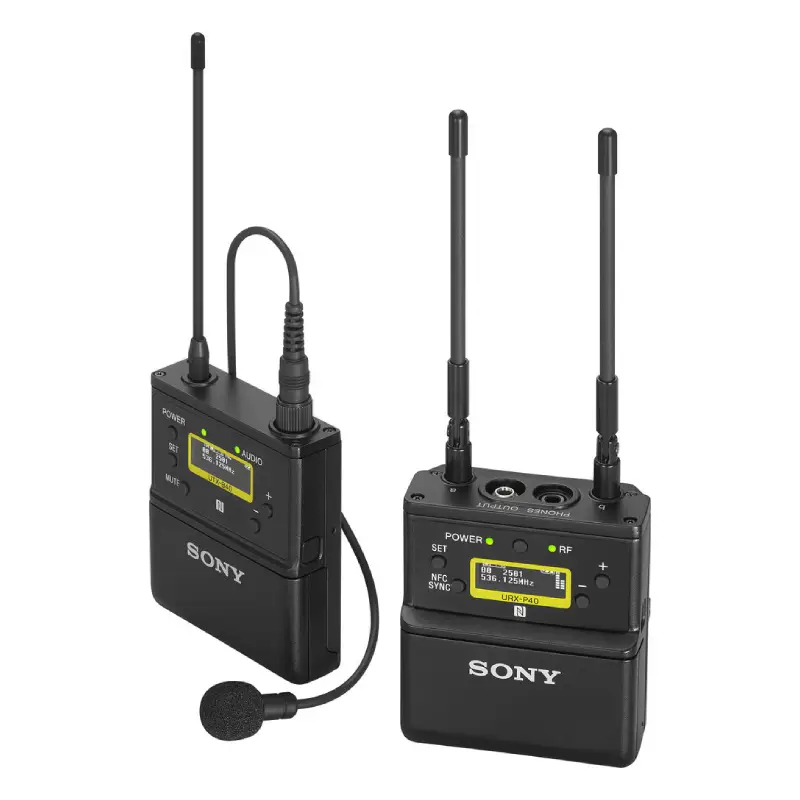

Sony UWP-D21 Camera-Mount Wireless Omni Lavalier Microphone
19,990 ฿
Description
จุดเด่นผลิตภัณฑ์
- สำหรับช่างวิดีโอ DIY/Vlogger, นักข่าว
- Lav Mic รอบทิศทาง
- เครื่องส่ง Bodypack พร้อม Auto Gain
- ตัวรับสัญญาณติดกล้องความหลากหลายที่แท้จริง
- 2772 ความถี่ในการสแกนอัตโนมัติด้วย NFC
- คุณสมบัติระดับมืออาชีพสำหรับเวิร์กโฟลว์ที่รวดเร็ว
- จอแสดงผล OLED ที่อ่านได้ในเวลากลางวัน
- เอาต์พุตหูฟัง
- แบตเตอรี่ AA 6 ชม. + ไฟ USB
- สูงสุด 16 ไมค์ใน Set / 330′ Range
สเปค Sony UWP-D21 Camera-Mount Wireless Omni Lavalier Microphone

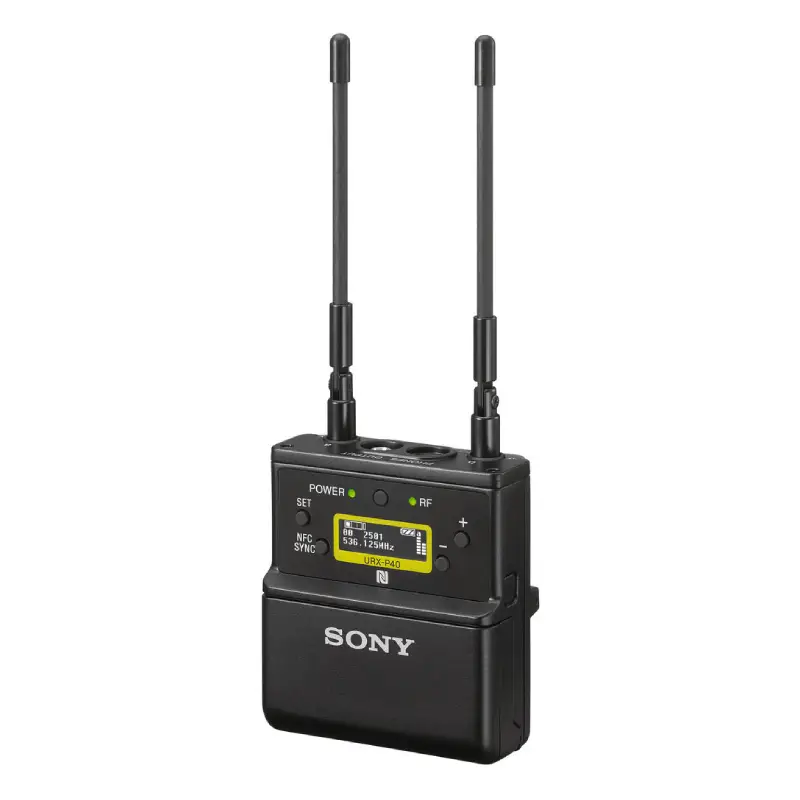

URX-P40 portable receiver
| Oscillator type | Crystal-controlled PLL synthesizer |
| Reception Type | True diversity method |
| Antenna Type | 1/4 λ wavelength wire antenna (angle-adjustable) |
| Carrier Frequencies | 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ : 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz |
| Frequency Response | 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (typical) (J model) |
| Signal-to-Noise Ratio | 60 dB (1 kHz sine wave, 5 kHz modulation) |
| Distortion (T.H.D) | 0.9% or less (1 kHz sine wave, 5 kHz modulation) |
| Audio Delay | Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output) |
| Audio Output Connector | 3.5 mm diameter 3-pole locking mini jack, external connection |
| Audio Output Level |
–60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
–20 dBFS (external connection, digital output, 0 dB audio output level) –50 dBFS (external connection, analog output, 0 dB audio output level) |
| Analog Audio Output Adjustment Range | -12dB – +12dB (3dB step) |

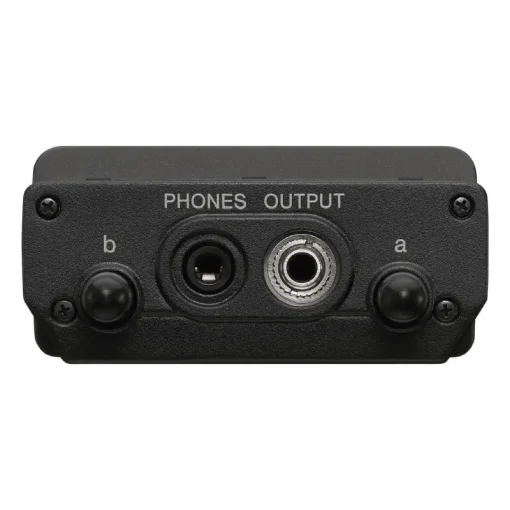

| Headphone Output Connector | 3.5 mm diameter mini jack |
| Tone Signal Frequency | In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
| Display | OLED |
| Power Requirements | DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector) |
| Battery Life* | Approx. six hours *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF. |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage/Transport Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Dimensions | 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna) |
| Mass | Approx. 131 g (4.6 oz) (excluding batteries) |

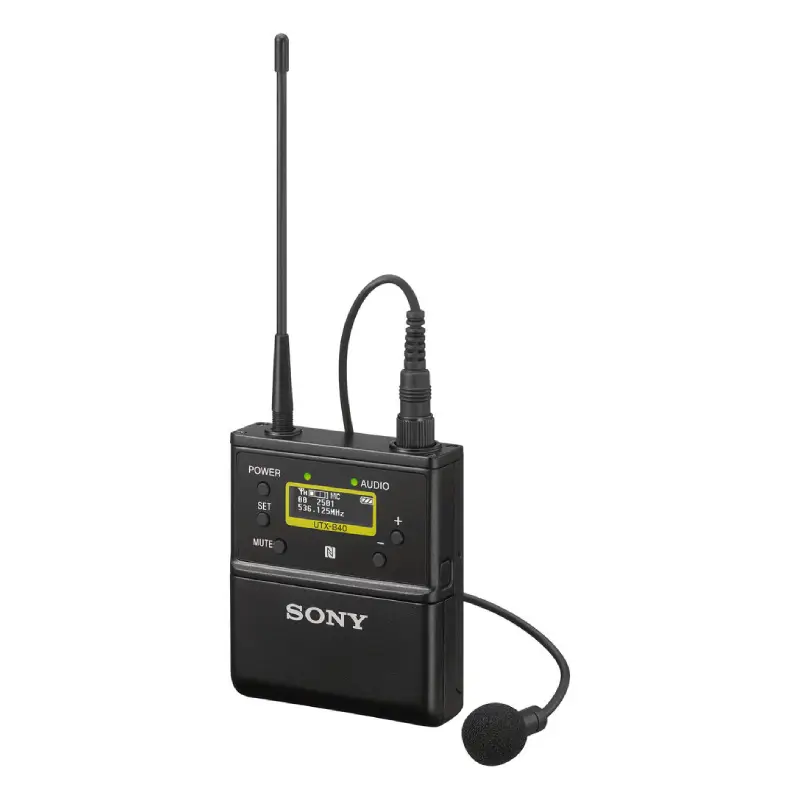

UTX-B40 bodypack transmitter
| Oscillator Type | Crystal-controlled PLL synthesizer |
| Antenna Type | 1/4 λ wave length wire antenna |
| Carrier Frequencies | 14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) E : 794.125 MHz to 805.875 MHz BJ : 806.125 MHz to 809.750 MHz KR : 925.125 MHz to 937.500 MHz |
| RF Output Power | 30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models) |
| Capsule Type | Elect retcondenser |
| Directivity | Omni-directional |
| Input Connector | 3.5 mm diameter 3-pole locking mini jack |
| Reference Audio Input Level | –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) +4 dBu (LINE input) |
| Audio Attenuator Adjustment Range | 0 dB to 27 dB (3 dB steps) |
| Frequency Response | 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model) |
| Signal-to-Noise Ratio | 60 dB (–60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.) |
| Distortion | 0.9% or less (–60 dBV, 1 kHz input) |
| Audio Delay | Approx. 0.35 ms |
| Tone Signal Frequency | In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
| Display | OLED |
| Power Requirements | DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector) |
| Battery life* | Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage/Transport Temperature | -20 °C to +55 °C (–4 °F to +131 °F) |
| Dimensions | 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna) |
| Mass | Approx. 83 g (2.9 oz) (excluding batteries) |
Specification
| Specification |
|---|
Additional information
| Choose | รับประกันศูนย์ 1 ปี (เช็คสินค้าก่อนสั่งซื้อ) |
|---|
