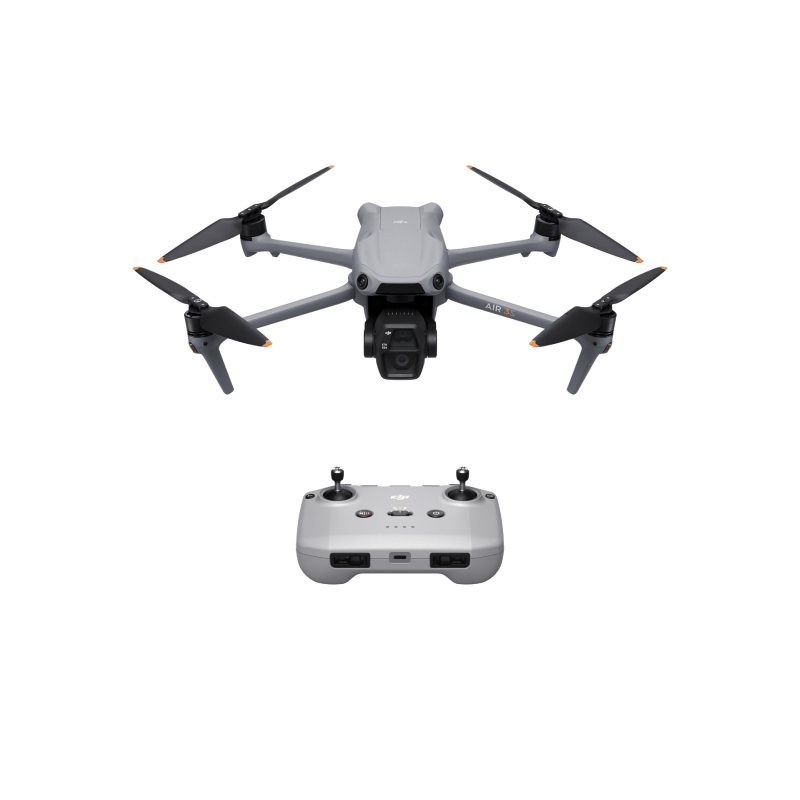

DJI Air 3S Drone

Aircraft

Takeoff Weight

724 g

Dimensions

Folded (without propellers): 214.19×100.63×89.17 mm (L×W×H) Unfolded (without propellers): 266.11×325.47×106.00 mm (L×W×H)

Max Ascent Speed

10 m/s

Max Descent Speed

10 m/s

Max Horizontal Speed

At sea level, in windless conditions: 21 m/s*At sea level, with 6 m/s tailwind, while flying in the same direction as the wind: 27 m/s*^{* Measured in a wind tunnel test environment when taking off from an altitude of 0 meter and ascending vertically to a height of 1.5 meters above the ground in Sport mode, and is for reference only. Always pay attention to reminders on the camera view during your flight. * 19 m/s in the EU region.}

Max Takeoff Altitude

6000 m

Max Flight Time

45 minutes ^{Measured by DJI Air 3S flying forward at a constant speed of 32.4 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.}

Max Hovering Time

41 minutes ^{Measured by DJI Air 3S hovering in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.}

Max Flight Distance

32 km ^{Measured by DJI Air 3S flying forward at a constant speed of 48.6 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.}

Max Wind Speed Resistance

12 m/s

Max Pitch Angle

36°

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System

GPS + Galileo + BeiDou

Hovering Accuracy Range

Vertical: ±0.1 m (with vision positioning) ±0.5 m (with satellite positioning)Horizontal: ±0.3 m (with vision positioning) ±0.5 m (with satellite positioning)

Internal Storage

42 GB

Camera

Image Sensor

Wide-Angle Camera: 1-inch CMOS, 50MP Effective Pixels Medium Tele Camera: 1/1.3-inch CMOS, 48MP Effective Pixels

Lens

Wide-Angle Camera FOV: 84° Format Equivalent: 24 mm Aperture: f/1.8 Focus: 0.5 m to ∞Medium Tele Camera FOV: 35° Format Equivalent: 70 mm Aperture: f/2.8 Focus: 3 m to ∞

ISO Range

Video Normal: 100-12800 (Normal) 100-3200 (D-Log M) 100-3200 (HLG) Slow Motion: 100-6400 (Normal) 100-3200 (D-Log M) 100-3200 (HLG)Photo 100-6400 (12 MP) 100-3200 (48 MP and 50 MP)

Shutter Speed

Wide-Angle Camera 12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure) 50MP Photo: 1/8000-2 sMedium Tele Camera 12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure) 48MP Photo: 1/8000-2 s

Max Image Size

Wide-Angle Camera: 8192×6144 Medium Tele Camera: 8064×6048

Still Photography Modes

Wide-Angle Camera Single Shot: 12 MP and 50 MP Burst Shooting: 12 MP, 3/5/7 frames; 50 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 50 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 50 MP, 5/7/10/15/20/30/60 sMedium Tele Camera Single Shot: 12 MP and 48 MP Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames; 48 MP, 3/5 frames at 0.7 EV step Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

Photo Format

JPEG/DNG (RAW)

Video Resolution

Wide-Angle Camera/Medium Tele Camera: H.264/H.265 4K: 3840×2160@24/25/30/48/50/60/120*fps FHD: 1920×1080@24/25/30/48/50/60/120*/240fps 2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps * ^{Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding.}

Video Format

MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video Bitrate

H.264/H.265: 130 Mbps

Supported File System

exFAT

Color Mode and Sampling Method

Wide-Angle/Medium Tele Camera Normal (FHD/2.7K): 8-bit 4:2:0 (H.264) Normal (FHD/2.7K): 10-bit 4:2:0 (H.265) HLG/D-Log M (FHD/2.7K): 10-bit 4:2:0 (H.264/H.265) Normal/HLG/D-Log M (4K): 10-bit 4:2:0 (H.265)

Digital Zoom

Wide-Angle Camera: 1-2.9x Medium Tele Camera: 3-9x

Gimbal

Stabilization

3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range

Tilt: -135° to 70° Roll: -50° to 50° Pan: -27° to 27°

Controllable Range

Tilt: -90° to 60° Pan: -5° to 5°

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.0037°

Sensing

Sensing Type

Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

Forward

Measurement Range: 0.5-18 m Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 72°

Backward

Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72°

Lateral

Measurement Range: 0.5-30 m Effective Sensing Speed: Flight Speed ≤ 14 m/s FOV: Horizontal 90°, Vertical 72°

Upward

Measurement Range: 0.5-18 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 72°, Left and Right 90°

Downward

Measurement Range: 0.3-14 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 106°, Left and Right 90°

Operating Environment

Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 1) Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 1)

3D Infrared Sensor

Forward-Facing LiDAR Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%) FOV: Up and Down 60°, Left and Right 60°Downward-Facing Infrared Sensor Measurement Range: 0.3-8 m (reflectivity > 10%) FOV: Front and Back 60°, Left and Right 60°

Live View Quality

Remote Controller: 1080p/30fps, 1080p/60fps

Operating Frequency

2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz ^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

Transmitter Power (EIRP)

2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC)5.1 GHz: < 23 dBm (CE)5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC) < 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference)

FCC: 20 km CE: 10 km SRRC: 10 km MIC: 10 km ^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.}

Max Transmission Distance (unobstructed, with interference)

Strong Interference: Urban landscape, approx. 1.5-4 km Medium Interference: Suburban landscape, approx. 4-10 km Low Interference: Suburb/Seaside, approx. 10-20 km ^{Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: Approx. 0-0.5 km Low Interference and Obstructed by Trees: Approx. 0.5-3 km ^{Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

Max Download Speed

O4: 10 MB/s (with DJI RC-N3) 10 MB/s (with DJI RC 2) Wi-Fi 5: 30 MB/s*^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

Lowest Latency

Aircraft + Remote Controller: Approx. 120 ms  ^{Depending on the actual environment and mobile device.}

Antenna

6 antennas, 2T4R

Wi-Fi

Protocol

802.11 a/b/g/n/ac

Operating Frequency

2.400-2.4835 GHz 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC)5.8 GHz: < 20 dBm (FCC/SRRC) < 14 dBm (CE)

Bluetooth

Protocol

Bluetooth 5.2

Operating Frequency

2.400-2.4835 GHz

Transmitter Power (EIRP)

< 10 dBm

Battery

Capacity

4276 mAh

Weight

Approx. 247 g

Nominal Voltage

14.6 V

Max Charging Voltage

17.2 V

Type

Li-ion 4S

Energy

62.5 Wh

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

Approx. 80 minutes (with DJI 65W Portable Charger) Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Charger

Input

DJI 65W Portable Charger: 100-240 V (AC), 50-60 Hz, 2 ADJI 100W USB-C Power Adapter: 100-240 V (AC), 50-60 Hz, 2.5 A

Output

DJI 65W Portable Charger: USB-C 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 4.3 A 20 V, 3.25 A 5-20 V, 3.25 AUSB-A 5 V, 2 ADJI 100W USB-C Power Adapter: Max 100 W (total)^{When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.}

Rated Power

DJI 65W Portable Charger: 65 W DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

Input

USB-C: 5-20 V, max 5 A

Output (power accumulation)

Battery Port: 12-17.2 V, 3.5 A

Output (charging)

Battery Port: 12-17.2 V, max 5 A

Output (USB)

USB-C: 5 V, 3 A 9 V, 5 A 12 V, 5 A 15 V, 5 A 20 V, 4.1 A

Charging Type

Three batteries charged in sequence

Compatibility

DJI Air 3 Intelligent Flight Battery DJI Air 3S Intelligent Flight Battery

Car Charger

Input

Car Power Input: 12.7-16 V, 6.5 A, rated voltage 14 V (DC)

Output

USB-C: 5 V, 5 A 9 V, 5 A 12 V, 5 A 15 V, 4.3 A 20 V, 3.25 A 5-20 V, 3.25 AUSB-A: 5 V, 2 A

Rated Power

65 W

Charging Temperature

5° to 40° C (41° to 104° F)

Recommended microSD Cards

Lexar 1066x 64GB V30 U3 A2 microSDXC Lexar 1066x 128GB V30 U3 A2 microSDXC Lexar 1066x 256GB V30 U3 A2 microSDXC Lexar 1066x 512GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 256GB V30 U3 A2 microSDXC Kingston Canvas GO! Plus 512GB V30 U3 A2 microSDXC

 DJI RC-N3 Remote Controller

Max Operating Time

Without Charging Any Mobile Device: 3.5 hours When Charging a Mobile Device: 1.5 hours

Max Supported Mobile Device Size

180×86×10 mm (L×W×H)

Operating Temperature

-10° to 40° C (14° to 104° F)

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

2 hours

Charging Type

It is recommended to use a 5V/2A charger.

Battery Capacity

9.36 Wh (3.6 V, 2600 mAh)

Weight

Approx. 320 g

Dimensions

104.2×150×45.2 mm (L×W×H)

Supported Mobile Device Port Type

Lightning, USB-C, Micro-USB ^{Using a mobile device with a Micro-USB port requires the DJI RC-N Series RC Cable (Standard Micro USB Connector), which is sold separately}

Video Transmission Operating Frequency

2.4000-2.4835 GHz 5.170-5.250 GHz 5.725-5.850 GHz^{Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.}

Video Transmission Transmitter Power (EIRP)

2.4 GHz: < 33 dBm (FCC) < 20 dBm (CE/SRRC/MIC)5.1 GHz: < 23 dBm (CE)5.8 GHz: < 33 dBm (FCC) < 14 dBm (CE) < 30 dBm (SRRC)
