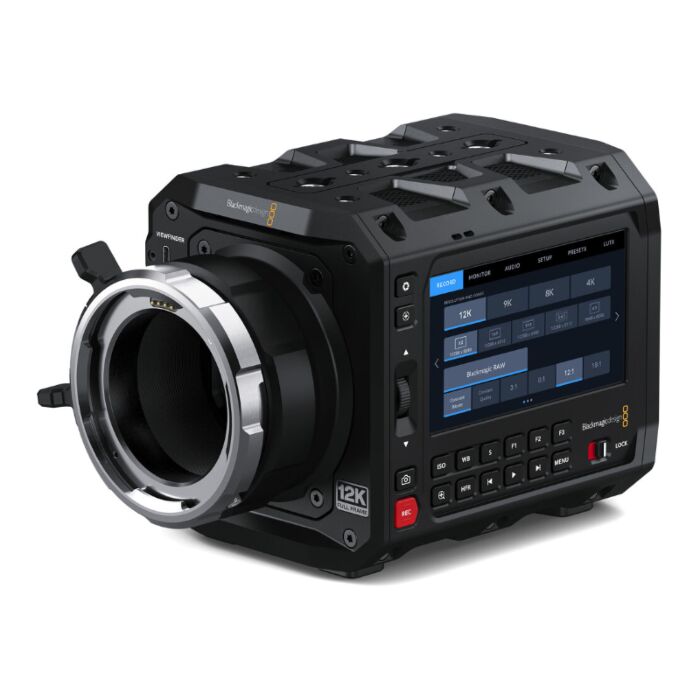

Blackmagic PYXIS 12K (ARRI PL)

จุดเด่นผลิตภัณฑ์

• เซ็นเซอร์ฟูลเฟรมขนาดใหญ่ 12K
• ช่วงไดนามิก 16 สต็อป
• Blackmagic RAW สูงสุด 12K 3:2 Open Gate
• ฟิลเตอร์ Low-Pass ออปติคัลในตัว
• ช่องเสียบการ์ด CFexpress สองช่อง พอร์ต USB-C
• รูปทรงกะทัดรัดพร้อมแผ่นด้านข้างที่สลับได้
• จอสัมผัส LCD HDR ขนาด 4 นิ้ว
• พอร์ตอีเทอร์เน็ต 10GbE รองรับ 10GHDBase-T
• ปุ่ม HFR และปุ่มลัดที่กำหนดได้สามปุ่ม
• อินพุตเสียง Mini-XLR และ 3.5 มม.

รายละเอียดสินค้า

• Blackmagic PYXIS 12K PL เป็นกล้องถ่ายภาพยนตร์ดิจิทัลขั้นสูงที่มีดีไซน์อเนกประสงค์เหลือเชื่อ ช่วยให้คุณสร้างอุปกรณ์กล้องที่สมบูรณ์แบบสำหรับการผลิตของคุณได้ รุ่นใหม่นี้มีเซ็นเซอร์ RGBW ฟูลเฟรมขนาด 12,288 x 8040 พร้อมฟิลเตอร์ออปติคัลโลว์พาสในตัว ช่วงไดนามิก 16 สต็อป ช่องใส่สื่อ CFexpress สองช่อง ทั้งหมดนี้มาในตัวเครื่องที่ปรับแต่งได้พร้อมตัวเลือกการติดตั้งที่ยืดหยุ่นและแผ่นด้านข้าง Blackmagic PYXIS 12K PL มีเมาท์ PL แบบคงที่ที่ทำงานร่วมกับเลนส์ถ่ายภาพยนตร์ระดับมืออาชีพคุณภาพสูงได้

สเปค Blackmagic PYXIS 12K (ARRI PL)

Camera Features
Effective Sensor Size	35.64mm x 23.32mm (Large Format)
Pixel Pitch	2.9 microns
Lens Mount	Active L-Mount.
Lens Control	Iris and focus on supported lenses.
Dynamic Range	16 Stops.
Native ISO	800
Shooting Resolutions	12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) 8192 x 3408 (8K 2.4:1) 6432 x 5360 (8K 6:5) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5)
Frame Rates	Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
High Frame Rates	12K (3:2 open gate) up to 40 fps 12K (16:9) up to 45 fps 12K (17:9) up to 50 fps 12K (2.4:1) up to 60 fps 12K (6:5) up to 40 fps 9K (3:2 Super 35) up to 50 fps 9K (16:9 Super 35) up to 65 fps 9K (17:9 Super 35) up to 65 fps 9K (2.4:1 Super 35) up to 80 fps 9K (6:5 Super 35) up to 50 fps 8K/4K (3:2 open gate) up to 72 fps 8K/4K (16:9) up to 84 fps 8K/4K (17:9) up to 90 fps 8K/4K (2.4:1) up to 112 fps 8K/4K (6:5) up to 72 fps
Focus	Focus control possible using compatible lenses.
Iris Control	Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses.
Screen Dimensions	4” 1920 x 1080.
Screen Brightness	1500 nits
Screen Type	LCD capacitive touchscreen.
Metadata Support	Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files.
Controls	Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys.
Timecode Clock	Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
Total Video Inputs	None
Total Video Outputs	1 x 12G-SDI up to 2160p60 1 x Viewfinder USB-C with power, data, video and locking connector.
Analog Audio Inputs	1 x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input
Analog Audio Outputs	1 x 3.5mm headphone jack.
Reference Inputs	Tri-Sync/Black Burst and Timecode.
Computer Interface	USB Type-C for external drive recording, PTP camera control and software updates.
Ethernet	1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE‑T.
Standards
HD Video Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance	SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10.
SDI Audio Sampling	Television standard sample rate of 48 kHz and 24‑bit.
Audio
Microphone	Integrated stereo microphone.
Built in Speaker	1 x mono speaker.
Media
Media	2 x CFexpress Type B card slot, 1 x 10 Gbps USB-C port for external media for Blackmagic RAW and H.264 Proxy Recording.
Media Format	Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs
Codecs	Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Bitrate 18:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5, H.264 Proxy in 1920 x 1080, 8-bit 4:2:0
Control
External Control	Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet.
Network Management
NTP	Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
Web Media Manager	Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
FTP	Download files from any drive attached to your camera using FTP.
SMB	File sharing using SMB
Storage Features
Storage Type	2 x CFexpress Type B 1 x high speed USB-C expansion port for external media.
Storage Rates	Storage rates based on 24 frames per second. 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 298 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 298 to 1,432 MB/s Blackmagic RAW Q1 - 179 to 716 MB/s Blackmagic RAW Q3 - 119 to 298 MB/s Blackmagic RAW Q5 - 90 to 224 MB/s 9K - 9408 x 6264 Blackmagic RAW 3:1 - 713 MB/s Blackmagic RAW 8:1 - 268 MB/s Blackmagic RAW 12:1 - 178 MB/s Blackmagic RAW 18:1 - 119 MB/s Blackmagic RAW Q0 - 178 to 856 MB/s Blackmagic RAW Q1 - 107 to 428 MB/s Blackmagic RAW Q3 - 71 to 178 MB/s Blackmagic RAW Q5 - 54 to 134 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 133 to 319 MB/s Blackmagic RAW Q1 - 80 to 200 MB/s Blackmagic RAW Q3 - 53 to 133 MB/s Blackmagic RAW Q5 - 40 to 100 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 34 to 81 MB/s Blackmagic RAW Q1 - 20 to 50 MB/s Blackmagic RAW Q3 - 13 to 34 MB/s Blackmagic RAW Q5 - 10 to 25 MB/s
Recording Formats	Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: 12,288 x 8,040, 12,288 x 6,912, 12,288 x 6,480, 12,288 x 5,112 and 9,648 x 8,040 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: 9,408 x 6,264, 8,688 x 4,896, 9,312 x 4,896, 9,312 x 3,864 and 7,680 x 6,408 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: 8,192 x 5,360, 8,192 x 4,608, 8,192 x 4,320, 8,192 x 3,408 and 6,432 x 5,360 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: 4,096 x 2,680, 4,096 x 2,304, 4,096 x 2,160, 4,096 x 1,704 and 3,216 x 2,680 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter.
Software
Software Included	Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test
Operating Systems
Power Requirements
Power Supply	1 x External 18V DC 90 W power supply.
External Power Input	1 x 2‑pin Lemo compatible locking connector.
Battery Type	BP-U series.
Power	12V - 18V
Accessories
Optional Accessories	Blackmagic URSA Cine Handle Blackmagic URSA Cine EVF Blackmagic PYXIS Rosette Plate Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit
Physical Specifications
Environmental Specifications
Operating Temperature	0°to 40°C (32° to 104°F
Storage Temperature	-20°to 45°C (-4° to 113°F)
Relative Humidity	0% to 90% non-condensing
What's Included	Blackmagic PYXIS 12K Lens turret dust cap PYXIS Standard Plate PYXIS SSD Plate 90W power supply with locking connector and international adapters Welcome booklet DaVinci Resolve Studio activation key
Warranty	Product Warranty1 Year Limited Manufacturer’s Warranty.
