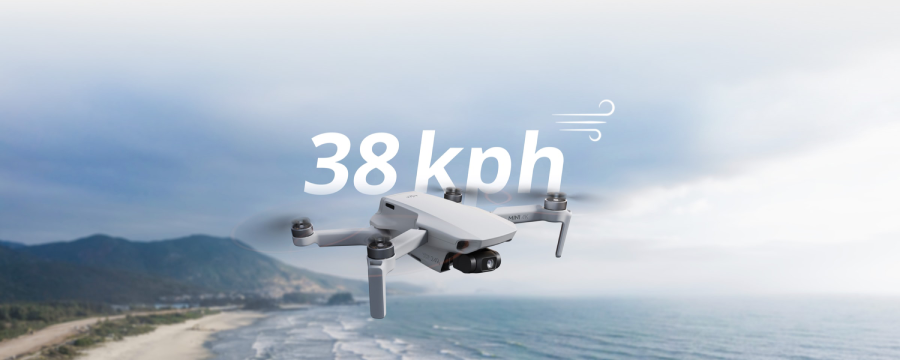

DJI Mini 4K Drone

Aircraft

Takeoff Weight

246 g

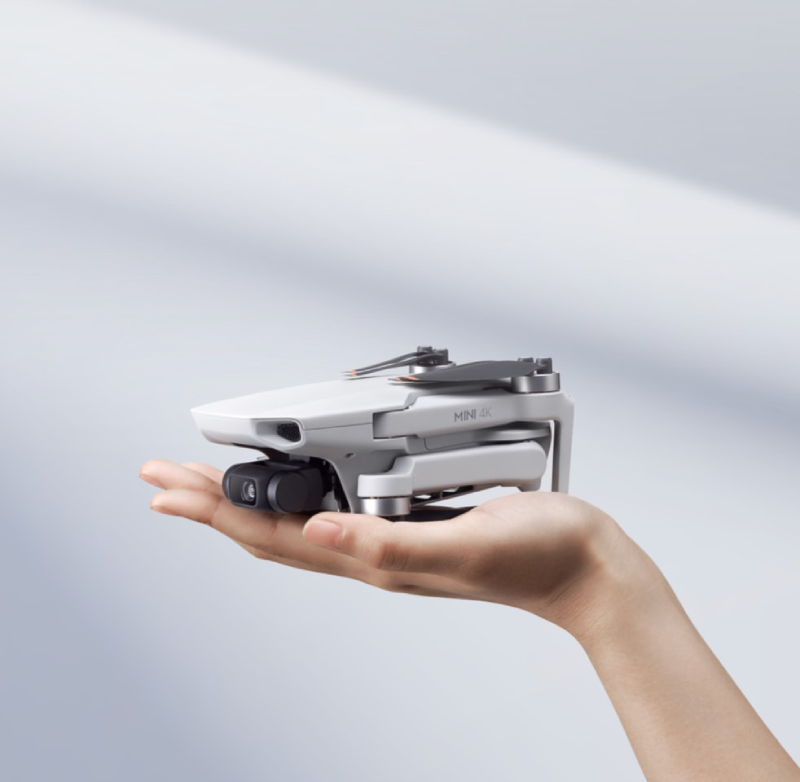

Dimensions

Folded (without propellers): 138×81×58 mm (L×W×H)
Unfolded (with propellers): 245×289×56 mm (L×W×H)

Max Flight Distance

15.7 km

Max Ascent Speed

5 m/s

Max Descent Speed

3.5 m/s

Max Horizontal Speed (at sea level, no wind)

16 m/s

Max Takeoff Altitude

4000 m

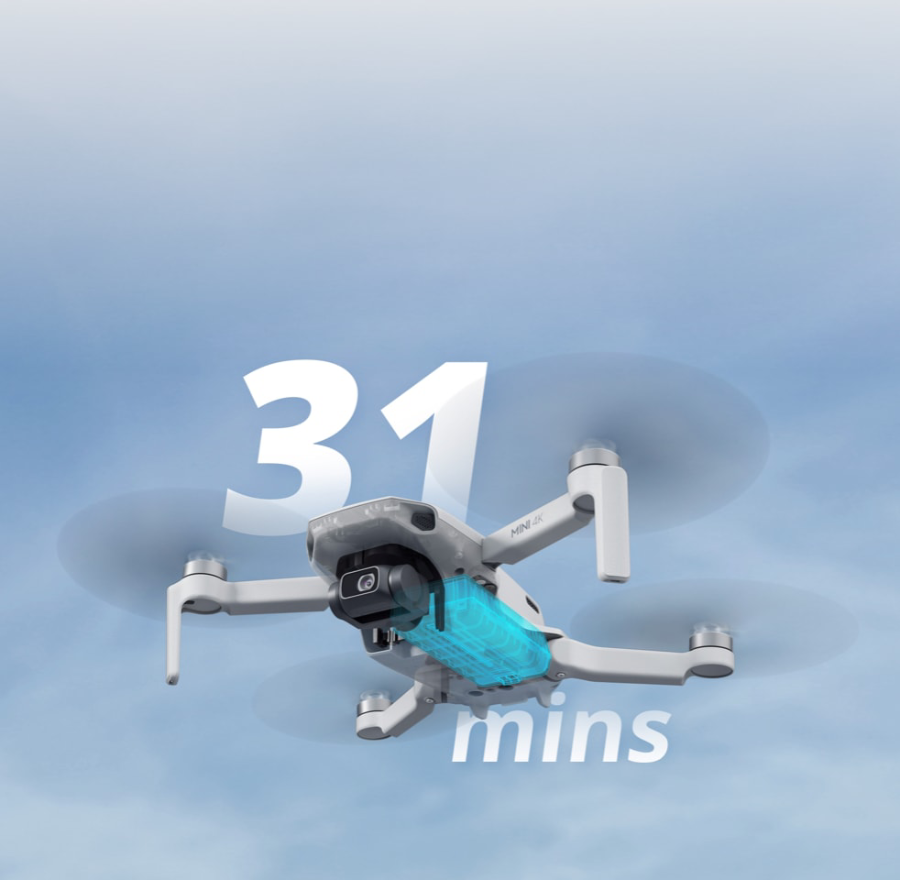

Max Flight Time

31 minutes

Max Wind Speed Resistance

10.7 m/s (Level 5)

Max Pitch Angle

40°

Operating Temperature

0° to 40° C (32° to 104° F)

Global Navigation Satellite System

GPS + GLONASS + Galileo

Hovering Accuracy Range

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)

Camera

Image Sensor

1/2.3-inch CMOS, Effective Pixels: 12 MP

Lens

FOV: 83°
Format Equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞

ISO Range

Video:
100-3200Photo:
100-3200

Shutter Speed

Electronic Shutter: 4-1/8000 s

Max Image Size

4000×3000

Still Photography Modes

Single Shot: 12 MP
Timed: 12 MP
JPEG: 2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 5/7/10/15/20/30/60 s
Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step
Panorama: Sphere, 180°, and Wide Angle

Photo Format

JPEG/DNG (RAW)
Video Resolution
DJI Mini 4K:
4K: 3840×2160@24/25/30fps
2.7K: 2720×1530@24/25/30/48/50/60fps
FHD: 1920×1080@24/25/30/48/50/60fps

Video Format

MP4 (MPEG-4 AVC/H.264)

Max Video Bitrate

DJI Mini 4K: 100Mbps

Supported File System

FAT32 (≤ 32 GB)
exFAT (> 32 GB)

Digital Zoom

DJI Mini 4K:
4K: 2×
2.7K: 3×
FHD: 4×

Color Mode

Normal

QuickShots Modes

Dronie, Helix, Rocket, Circle, and Boomerang

Gimbal

Stabilization

3-axis mechanical gimbal (tilt, roll, and pan)

Mechanical Range

Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°

Controllable Range

Tilt:
-90° to 0° (default)
-90° to 20° (extended)

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Sensing

Downward

Precise Hovering Range: 0.5-10 m

Operating Environment

Downward:
surfaces with discernible patterns, diffuse reflectivity >20% (e.g., walls, trees, people), and adequate lighting (lux >15)

Video Transmission

Video Transmission System

DJI O2

Live View Quality

Remote Controller:
720p/30fps

Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)

2.400-2.4835 GHz:
< 26 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:
< 26 dBm (FCC/SRRC)
< 14 dBm (CE)

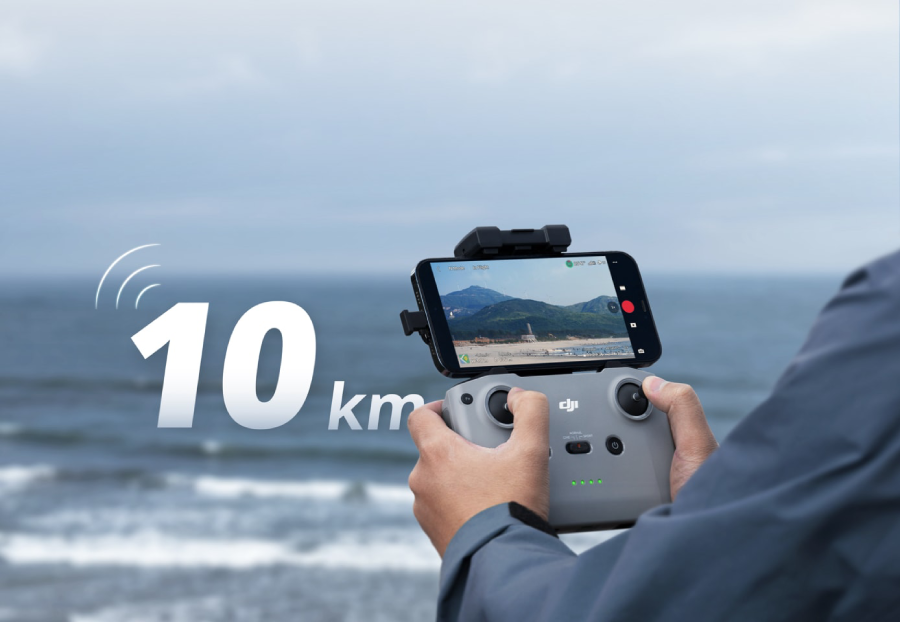

Max Transmission Distance (free of interference)

FCC: 10 km
CE: 6 km
SRRC: 6 km
MIC: 6 km

Max Transmission Distance (with interference)

Strong Interference: urban landscape, approx. 1.5-3 km
Medium Interference: suburban landscape, approx. 3-6 km
Low Interference: suburb/seaside, approx. 6-10 km

Low Interference

suburb/seaside, approx. 6-10 km

Battery

Capacity

2250 mAh

Weight

82.5 g

Nominal Voltage

7.7 V

Max Charging Voltage

8.8 V

Type

Li-ion

Energy

17.32 Wh

Charging Temperature

5° to 40° C (41° to 104° F)

Battery Charging Hub

Input

5 V, 3 A
9 V, 3 A
12 V, 3 A

Output

USB-A:
Max Voltage: 5 V; Max Current: 2 A

Charging Type

Three batteries charged in sequence
