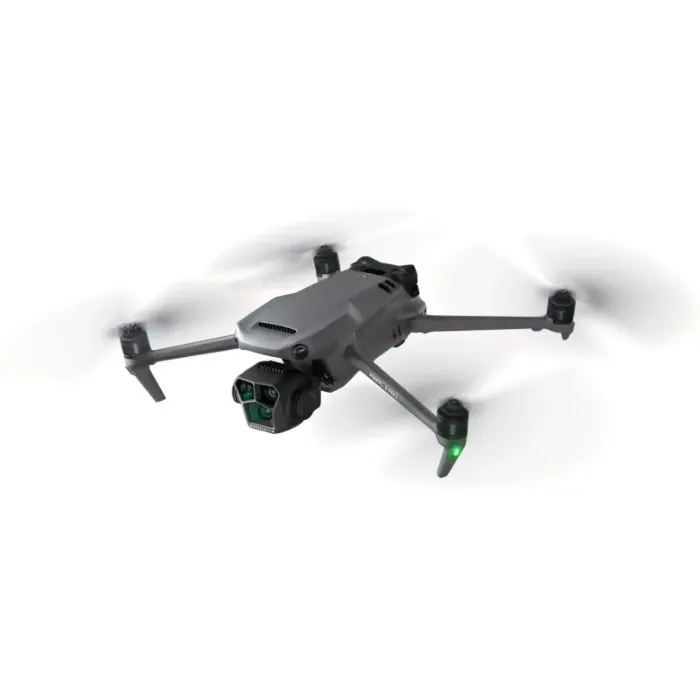

DJI Mavic 3 Pro Drone

Aircraft

Takeoff Weight

Mavic 3 Pro: 958 g
Mavic 3 Pro Cine: 963 g

Dimensions

Folded (without propellers): 231.1×98×95.4 mm (L×W×H)
Unfolded (without propellers): 347.5×290.8×107.7 mm (L×W×H)

Max Ascent Speed

8 m/s

Max Descent Speed

6 m/s

Max Horizontal Speed (at sea level, no wind)

21 m/s

Max Takeoff Altitude

6000 m

Max Flight Time

43 minutes
Measured in a controlled test environment. Specific test conditions are as follows: flying at a constant speed of 32.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Hovering Time

37 minutes
Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.

Max Flight Distance

28 km

Max Wind Speed Resistance

12 m/s

Max Tilt Angle

35°

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System

GPS + Galileo + BeiDou

Hovering Accuracy Range

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with high-precision positioning system)

Internal Storage

Mavic 3 Pro: 8 GB (approx. 7.9GB available space)
Mavic 3 Pro Cine: 1 TB (approx. 934.8GB available space)

Camera

Image Sensor

Hasselblad Camera: 4/3 CMOS, Effective Pixels: 20 MP
Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
Tele Camera: 1/2-inch CMOS, Effective Pixels: 12 MP

Lens

Hasselblad Camera
FOV: 84°
Format Equivalent: 24mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞Medium Tele Camera
FOV: 35°
Format Equivalent: 70mm
Aperture: f/2.8
Focus: 3 m to ∞Tele Camera
FOV: 15°
Format Equivalent: 166mm
Aperture: f/3.4
Focus: 3 m to ∞

ISO Range

Video
Normal and Slow Motion:
100-6400 (Normal)
400-1600 (D-Log)
100-1600 (D-Log M)
100-1600 (HLG)Night:
800-12800 (Normal)Photo
100-6400

Shutter Speed

Hasselblad Camera: 8-1/8000 s
Medium Tele Camera: 2-1/8000 s
Tele Camera: 2-1/8000 s

Max Image Size

Hasselblad Camera: 5280×3956
Medium Tele Camera: 8064×6048
Tele Camera: 4000×3000

Still Photography Modes

Hasselblad Camera
Single Shot: 20 MP
Burst Shooting: 20 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
Timed: 20 MP, 2/3/5/7/10/15/20/30/60 sMedium Tele Camera
Single Shot: 12 MP or 48 MP
Burst Shooting: 12 MP or 48 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12 MP or 48 MP, 3/5 frames at 0.7 EV step
Timed:
12 MP: 2/3/5/7/10/15/20/30/60 s
48 MP: 7/10/15/20/30/60 sTele Camera
Single Shot: 12 MP
Burst Shooting: 12 MP, 3/5/7 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s

Photo Format

JPEG/DNG (RAW)

Video Resolution

Hasselblad Camera
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
5.1K: 5120×2700@24/25/30/48/50fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fpsH.264/H.265
5.1K: 5120×2700@24/25/30/48/50fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fps
FHD: 1920×1080@24/25/30/48/50/60/120*/200*fps
* Recording frame rates. The corresponding video plays as slow-motion video.Medium Tele Camera
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
4K: 3840×2160@24/25/30/48/50/60fpsH.264/H.265
4K: 3840×2160@24/25/30/48/50/60fps
FHD: 1920×1080@24/25/30/48/50/60fpsTele Camera
Apple ProRes 422 HQ
Apple ProRes 422
Apple ProRes 422 LT
4K: 3840×2160@24/25/30/48/50/60fpsH.264/H.265
4K: 3840×2160@24/25/30/50/60fps
FHD: 1920×1080@24/25/30/50/60fps

Video Format

MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
MOV (Apple ProRes 422 HQ/422/422 LT)

Max Video Bitrate

H.264/H.265: 200 Mbps
Apple ProRes 422 HQ: 3772 Mbps
Apple ProRes 422: 2514 Mbps
Apple ProRes 422 LT: 1750 Mbps

Supported File System

exFAT

Color Mode and Sampling Method

Hasselblad Camera
Normal:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
8-bit 4:2:0 (H.264/H.265)
D-Log:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
10-bit 4:2:0 (H.264/H.265)
HLG/D-Log M:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
10-bit 4:2:0 (H.265)Medium Tele Camera
Normal:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
10-bit 4:2:0 (H.265)Tele Camera
Normal:
10-bit 4:2:2 (Apple ProRes 422 HQ/422/422 LT)
8-bit 4:2:0 (H.264/H.265)

Digital Zoom (only in Normal Video Mode and Explore Mode)

Hasselblad Camera: 1-3x
Medium Tele Camera: 3-7x
Tele Camera: 7-28x

Gimbal

Stabilization

3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range

Tilt: -140° to 50°
Roll: -50° to 50°
Pan: -23° to 23°

Controllable Range

Tilt: -90° to 35°
Pan: -5° to 5°

Max Control Speed (tilt)

100°/s

Angular Vibration Range

Hovering Without Wind: ±0.001°
Normal Mode: ±0.003°
Sport Mode: ±0.005°

Sensing

Sensing Type

Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

Forward

Measurement Range:
0.5-20 m
Detection Range:
0.5-200 m
Effective Sensing Speed:
Flight Speed ≤ 15 m/s
FOV:
Horizontal 90°, Vertical 103°

Backward

Measurement Range:
0.5-16 m
Effective Sensing Speed:
Flight Speed ≤ 12 m/s
FOV:
Horizontal 90°, Vertical 103°

Lateral

Measurement Range:
0.5-25 m
Effective Sensing Speed:
Flight Speed ≤ 15 m/s
FOV:
Horizontal 90°, Vertical 85°

Upward

Measurement Range:
0.2-10 m
Effective Sensing Speed:
Flight Speed ≤ 6 m/s
FOV:
Front and Back 100°, Left and Right 90°

Downward

Measurement Range:
0.3-18 m
Effective Sensing Speed:
Flight Speed ≤ 6 m/s
FOV:
Front and Back 130°, Left and Right 160°

Operating Environment

Forward, Backward, Left, Right, and Upward:
surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

Video Transmission

Video Transmission System

O3+

Live View Quality

Remote Controller:
1080p/30fps, 1080p/60fps

Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference)

FCC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.

Max Transmission Distance (unobstructed, with interference)

Strong Interference: Urban landscape, approx. 1.5-3 km
Medium Interference: Suburban landscape, approx. 3-9 km
Low Interference: Suburb/seaside, approx. 9-15 km
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km
Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Download Speed

O3+:
5.5 MB/s (with DJI RC-N1 Remote Controller)
15 MB/s (with DJI RC Pro)
5.5 MB/s (with DJI RC)Wi-Fi 6: 80 MB/s*
* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.

Lowest Latency

130 ms (with DJI RC-N1 Remote Controller)
120 ms (with DJI RC Pro)
130 ms (with DJI RC)
Depending on the actual environment and mobile device.

Antenna

4 antennas, 2T4R

Battery

Capacity

5000 mAh

Weight

335.5 g

Nominal Voltage

15.4 V

Max Charging Voltage

17.6 V

Type

Li-ion 4S

Energy

77 Wh

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

Approx. 96 minutes
Use the included data cable of the DJI 65W Portable Charger.
Approx. 70 minutes
Use the DJI 100W USB-C Power Adapter and DJI Mavic 3 Series 100W Battery Charging Hub.

Charger

Input

DJI 65W Portable Charger:
100-240 V (AC), 50-60 Hz, 2 ADJI 100W USB-C Power Adapter:
100-240 V (AC), 50-60 Hz, 2.5 A

Output

DJI 65W Portable Charger:
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 AUSB-A:
5 V, 2 ADJI 100W USB-C Power Adapter:
Max 100 W (total)
When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.

Rated Power

DJI 65W Portable Charger: 65 W
DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

Input

USB-C: 5-20 V, max 5 A

Output

Battery Port: 12-17.6 V, max 5 A

Rated Power

Battery Charging Hub: 65 W
Battery Charging Hub (100W): 100 W

Charging Type

Three batteries charged in sequence.

Compatibility

DJI Mavic 3 Intelligent Flight Battery

Car Charger

Input

Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC)

Output

USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 AUSB-A:
5 V, 2 A

Rated Power

65 W

Charging Temperature

5° to 40° C (41° to 104° F)

Storage

Recommended microSD Cards
Lexar 1066x 64GB V30 A2 microSDXC
Lexar 1066x 128GB V30 A2 microSDXC
Lexar 1066x 256GB V30 A2 microSDXC
Lexar 1066x 512GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk High Endurance 128GB V30 microSDXC
SanDisk High Endurance 256GB V30 microSDXC
Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
Kingston Canvas Go! Plus 256GB V30 A2 microSDXC
Kingston Canvas Go! Plus 512GB V30 A2 microSDXC
Samsung EVO Plus 512GB V30 A2 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
Samsung PRO Plus 512GB V30 A2 microSDXC
